SJ5E-03R01

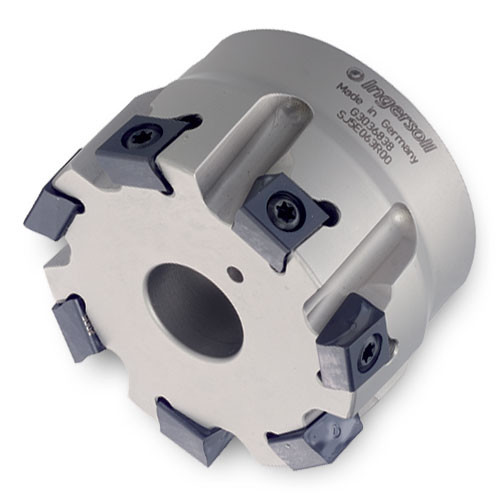

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 2-3/8″ OAL × 0.36″ LOC ; 11 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 11 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.36″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 2-3/8″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | .36″ Max. depth of cut 10.5 mm Insert with 4 indexes | Country of Origin | Usa |
Shipping Info
Package Weight
0.007
