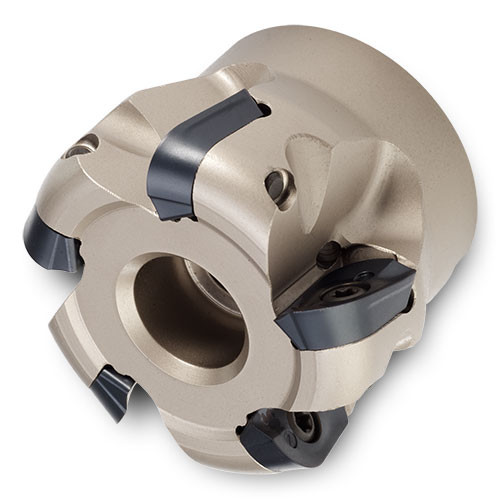

2J4E-40R02
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.63″ LOC ; 8 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 4″ | Ramping Angle Maximum (RMPX) | 1.2 Degrees |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A |
Product Features
| Family Description | .63″ Depth of cut 18 mm Insert with 2 indexes Insert corners: .187″, .250″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.007
