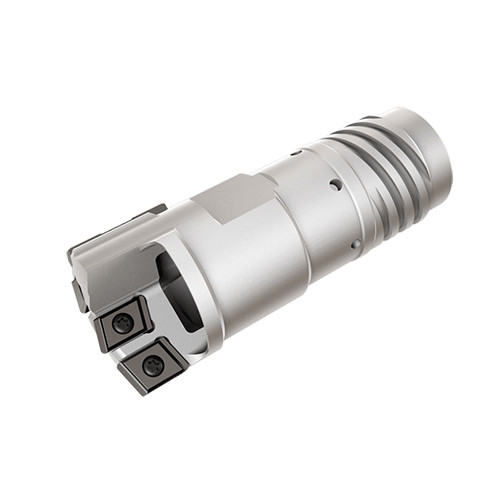

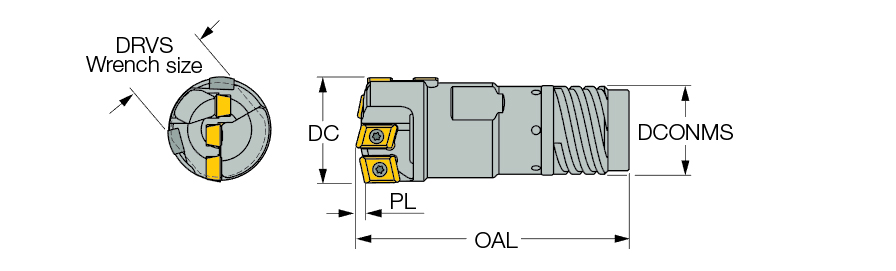

IDD-EF 1.312-1.425-FB
| Application | | Deep Drilling | | Connection Thread Size (Ts) | TDO-I7 |
| Connection Diameter Machine Side (DCONMS) | 1.181″ | Cutting Diameter Minimum (DCN) | 1.312″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 1.425″ |
| Overall Length (OAL) | 3.661″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
Product Features
| Family Description | Deep double tube drills with external 4-Start Thread Connection for high feed. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | Inserts and guide pads to be ordered separately Ordering example: IDD-EF 1.693-FB For quotation form and user guide, click on More Info |
