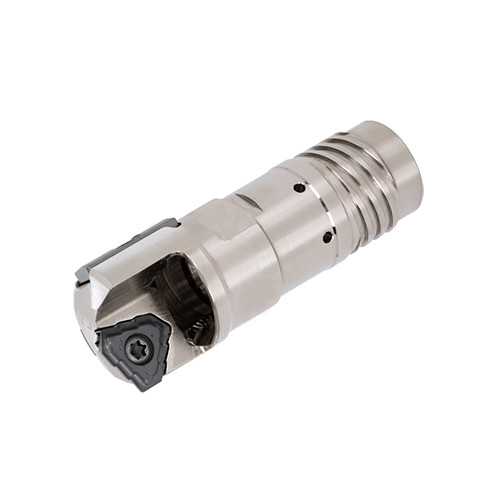

IDD-EF 0.788-0.858-FT
| Application | | Deep Drilling | | Connection Thread Size (Ts) | TDO-I1 |

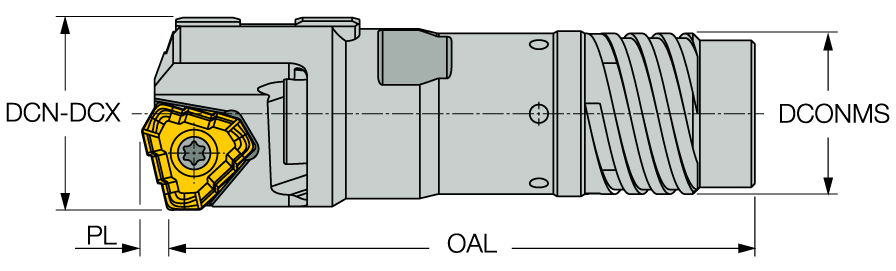

| Connection Diameter Machine Side (DCONMS) | 0.709″ | Cutting Diameter Minimum (DCN) | 0.788″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 0.858″ |
| Functional Length (LF) | 2-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.626″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Deep double tube drills with external 4-Start Thread Connection carrying the triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and for high feed. | Country of Origin | Japan |

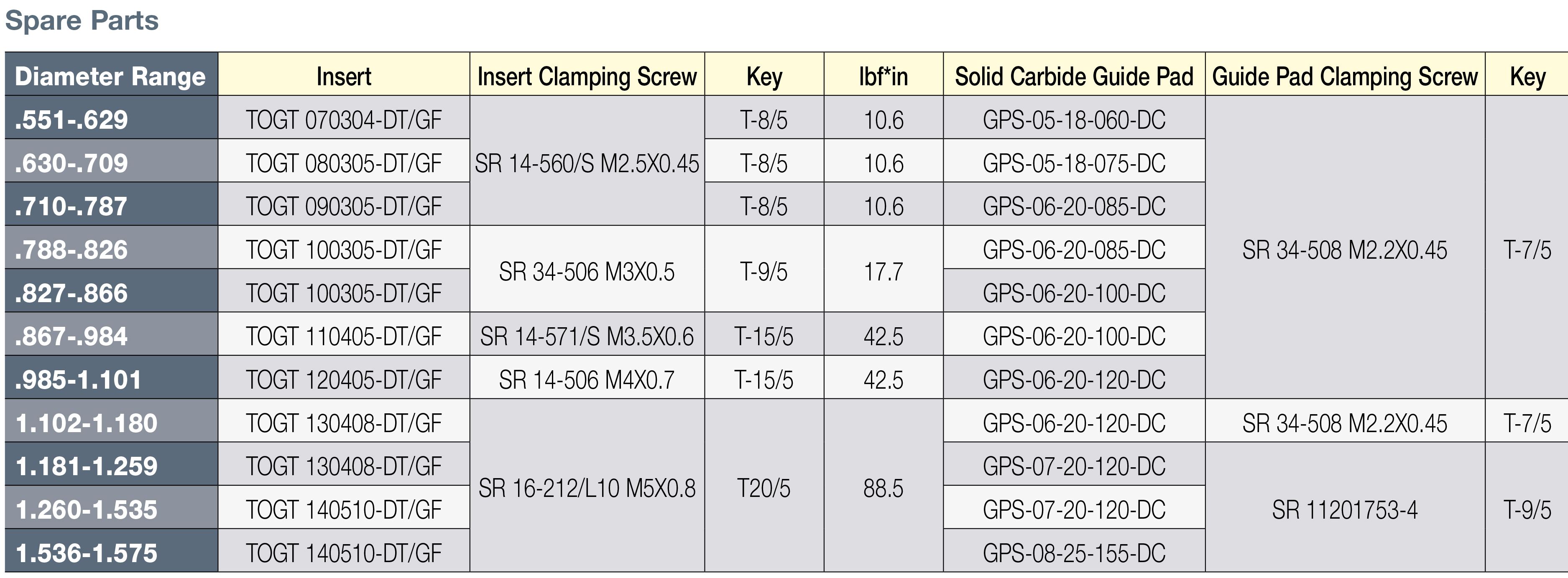

| Remarks | Note: Each item in the attached catalog page represents a diameter range. Inserts and guide pads to be ordered separately Ordering example: IDD-EF 0.750-FT |
