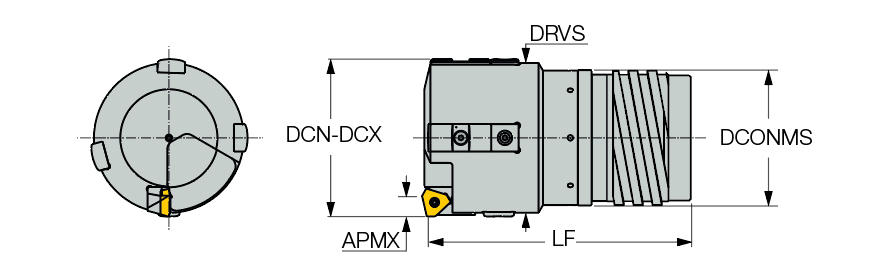

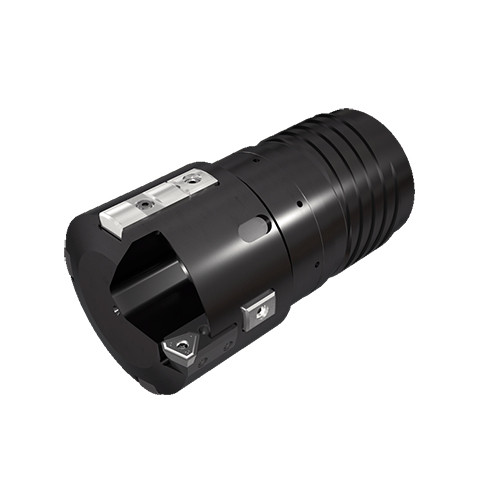

IDC-EC 4.882-5.353
| Connection Diameter Machine Side (DCONMS) | 4.449″ | Measurement Type | Inch |
| Flute Count (NOF) | 1 | Application | | Deep Drilling | |
| Cutting Diameter Maximum (DCX) | 5.353″ | Depth of Cut Maximum (APMX) | 0.4094″ |
| Cutting Diameter Minimum (DCN) | 4.882″ | Drive Size (DRVS) | 5.157″ |
| Body Material | Steel | Functional Length (LF) | 8.071″ |
Product Features
| Family Description | Double Tube Counterboring Drills with Outer 4-Start Thread Connection, Cartridges and Adjustable Diameter (1.575-7.243″ dia.). | Country of Origin | Japan |

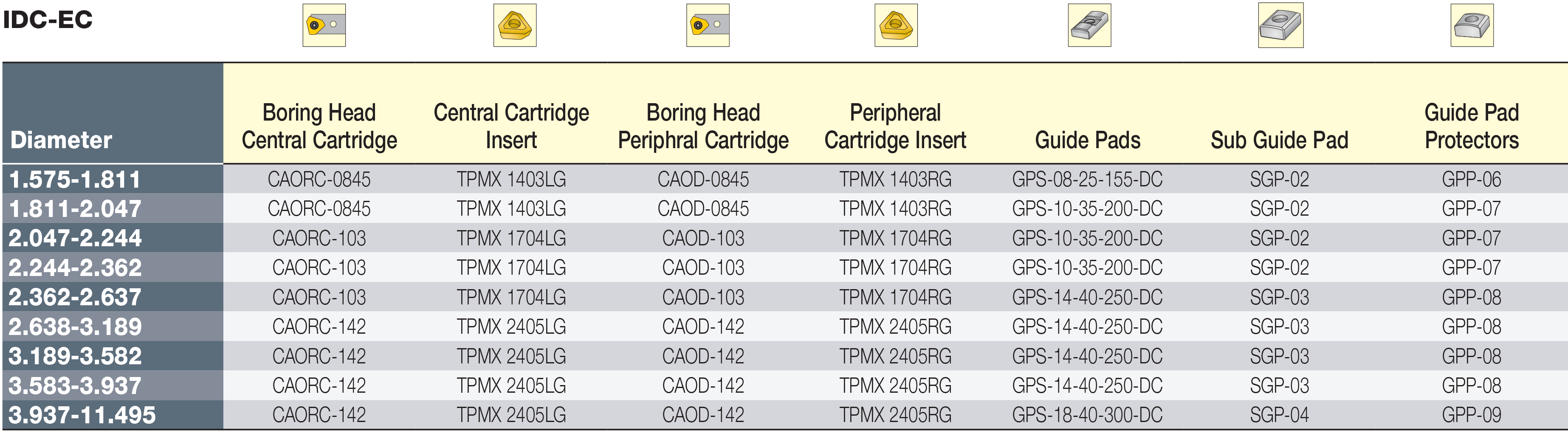

| Remarks | For spare parts and insert information, click on More Info Ordering example: DDC-EC 130.35 |
