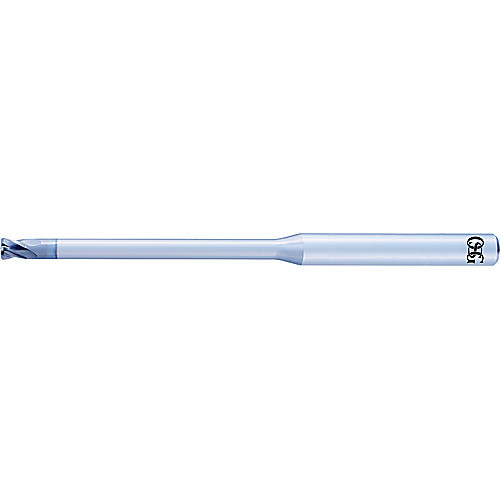

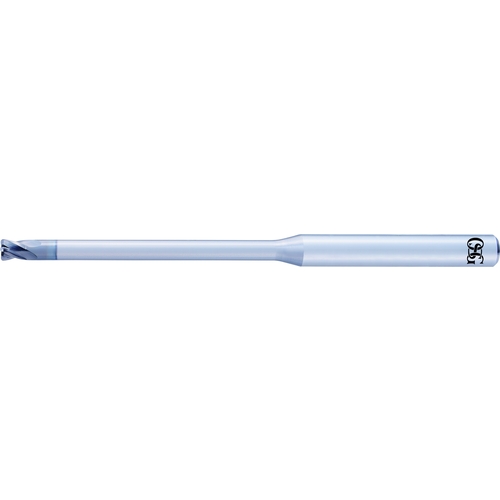

6XR0.5X18 4FL AE-CPR4-H
| Cutting Diameter (DC) | 6 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Alloy Steel | Die Steel | Hardened Steel | |
| Depth of Cut Maximum (APMX) | 4.8 mm | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 90 mm | Series/List # | 8592 |
| Cutting Edge Material | Carbide | Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
| Coating | DUROREY | Single / Double End | Single End |
| Flute Count (NOF) | 4 | Center Cutting | Center Cutting |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Diameter Tolerance | +0 / -0.015 |
| Shank Type | Straight | Shank Diameter Tolerance (TCDMM) | h4 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.08
