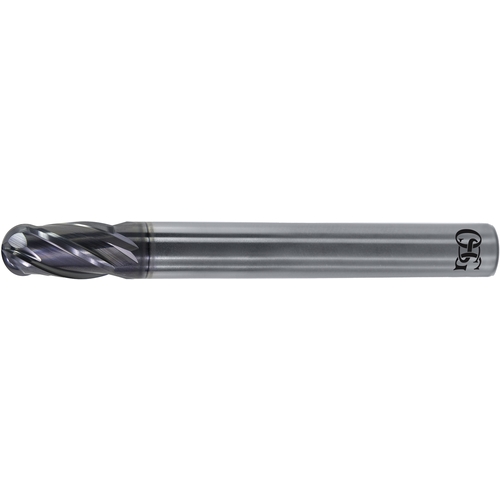

5/16 4FL EXOCARB WXL-EBM
| Cutting Diameter (DC) | 5/16″ | Tool Type | Ballnose |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Length Group | REGULAR |
| Depth of Cut Maximum (APMX) | 5/8″ | End Shape | Ball Nose |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Coating | WXL | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 3430 |
| Shank Type | Straight | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Carbon Steel | Alloy Steel | Die Steel | Stainless Steel | Cast Iron | Non-Ferrous | HRSA | Hardened Steel | | Center Cutting | Center Cutting |
| Corner Radius Tolerance (+/-) (RETOL) | +/- 0.00039 | Single / Double End | Single End |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.17
