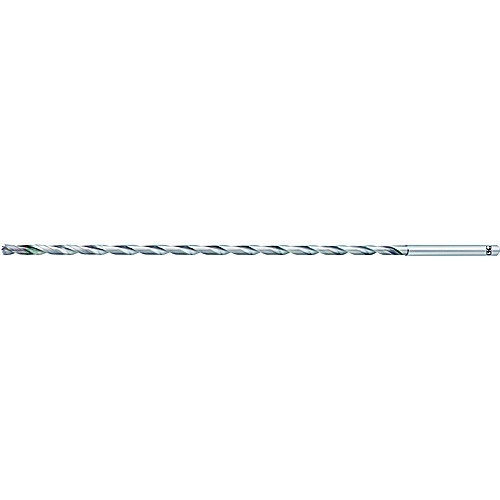

5.7MM A BRAND ADO-50D
| Drill Bit Size / Cutting Diameter (DC) | 5.7 mm | Shank Type | Straight |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2244″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2244″ | Tool Type | Extra Long |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.7 mm | Flute Type | R Thinning |
| Length Group | 50xD | Series/List # | 6570 |
| Coating | EgiAs | Usable Length (LU) | 303 mm |
| Applicable Material | | Carbon Steel | Alloy Steel | Die Steel | Stainless Steel | Cast Iron | Hardened Steel | | Length Chip Flute (LCF) | 303 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 353 mm |
| Coolant Supply Property (CSP) | Internal | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 303 mm | Single / Double End | Single End |
| Flute Helix Angle (FHA) | 25 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.06
