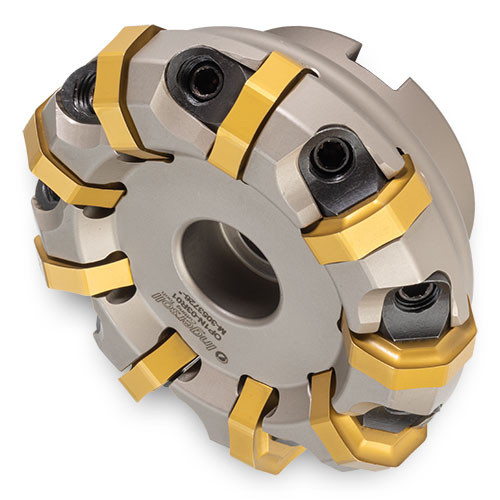

OP1N250R00
| Cutting Diameter (DC/DCX) | 10.2362″ | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 9.842″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 10.2362″ | Body Material | Steel |
| Cutting Item Count (CICT) | 30 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.197″ | Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2.362″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.402″ | Tool Cutting Edge Angle (KAPR) | 43 Degrees |
| Hub Diameter (DHUB) | 2.48″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 20-40 Ra surface finishes when using wiper in one pocket Carbide & SiN options RH rotation Great price-per-edge economy! | Country of Origin | Israel |
Shipping Info
Package Weight
30.909
