2L1G-40R01

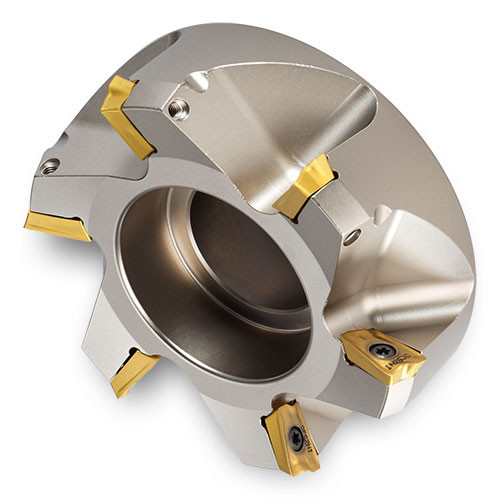

Indexable Face Mill; 4.35″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.15″ LOC ; 6 Inserts ; 75 Degrees
| Cutting Diameter (DC/DCX) | 4.35″ | Arbor Style | A |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 4.35″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.15″ | Application | | Facing | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Insert Corner: .03″ R Uses opposing unused edges of AOMT17 insert, offering the value to obtain 4 indexes. Ideal for squaring up blocks and general facing. | Country of Origin | Usa |
Shipping Info
Package Weight
0.008
