A10K SDXNR-07
Int. Turning Tool ; 4.921″ OAL ; 0.354″ Shank Height ; 0.394″ Shank Dia. ; 4.921″ LF ; 0.512″ Min Bore Dia. ; Steel

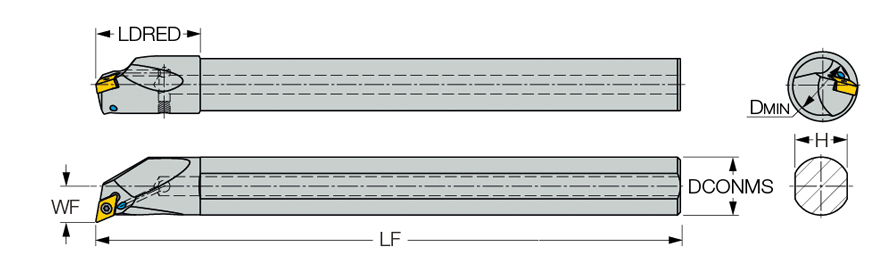

| Connection Diameter Machine Side (DCONMS) | 0.394″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 4.921″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4.921″ | Application | | Int. 55° Diamond 100° Approach | |
| Reduced Body Diameter Length (LDRED) | 0.787″ | Rake Angle Axial (GAMP) | -14 Degrees |
| Shank Height (H) | 0.354″ | Rake Angle Radial (GAMF) | -16 Degrees |
| Functional Width (WF) | 0.299″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNGP 22.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.512″ | Measurement Type | Inch |
Product Features

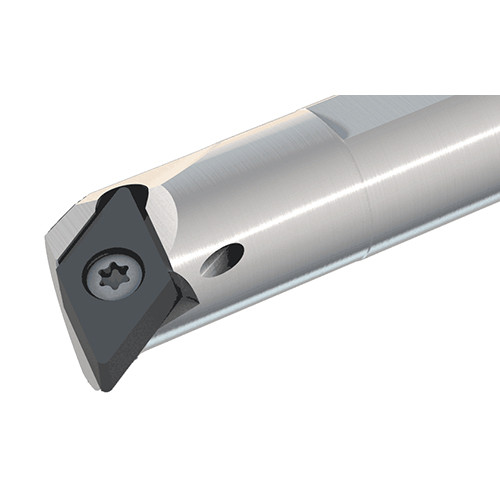

| Family Description | Boring bars with steel and carbide shanks carrying DNGP 22.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
| Remarks | Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole. |
Shipping Info
Package Weight
0.194
