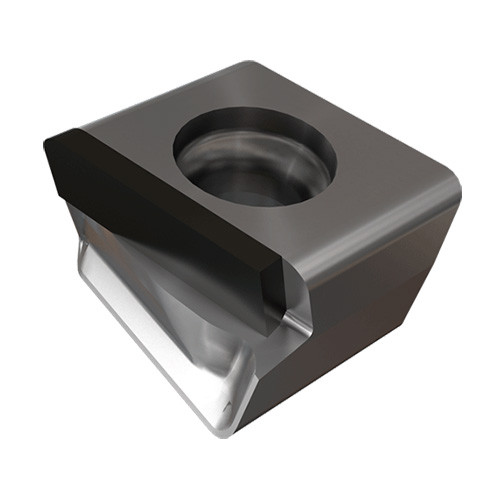

HTP LNAR 1006 FR-A ID5
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Shouldering | | Cutting Edge Material | PCD |

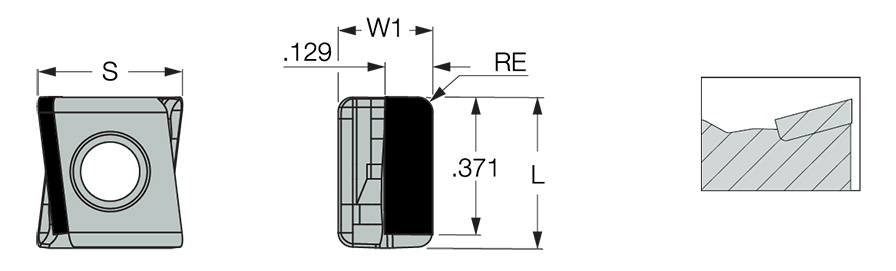

| Insert Length (INSL) | 0.413″ | Tool Type | Mill Tangential Inserts |
| Corner Radius (RE) | 0.0394″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Width (W1) | 0.256″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.399″ | Measurement Type | Inch |
| Grade | ID5 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
Product Features
| Family Description | A PCD-tipped insert, intended mainly for finish and semi-finish machining of aluminum alloys. Combines very high wear resistance with high toughness. | Country of Origin | Italy |
