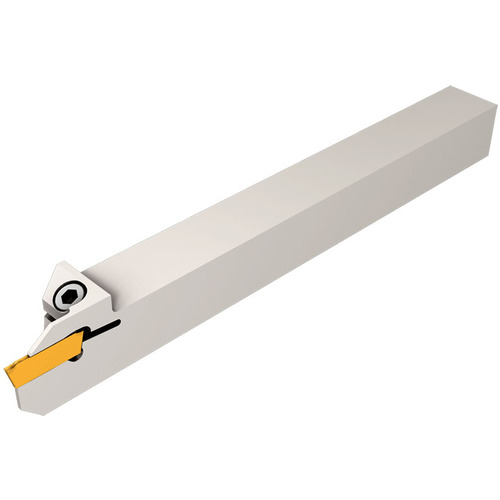

DGTR 0810B-1.0-D22SH
Parting Off Holder; 120 mm OAL × 15 mm OAH ; Steel

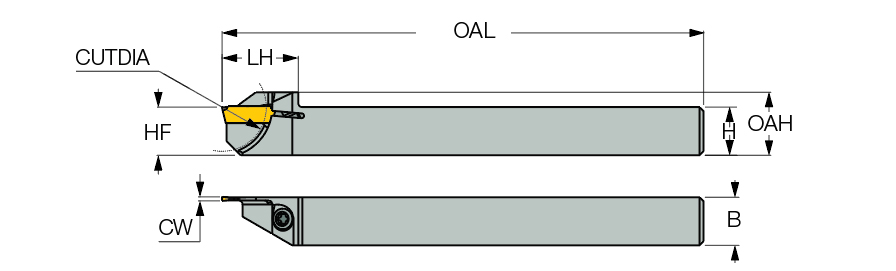

| Shank Height (H) | 8 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 120 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 22 mm |
| Head Length (LH) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 15 mm | Measurement Type | Metric |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 30 mm |
Product Features
| Family Description | Parting and grooving short head tools for CNC and Swiss automatics. | Country of Origin | Israel |
Shipping Info
Package Weight
109
