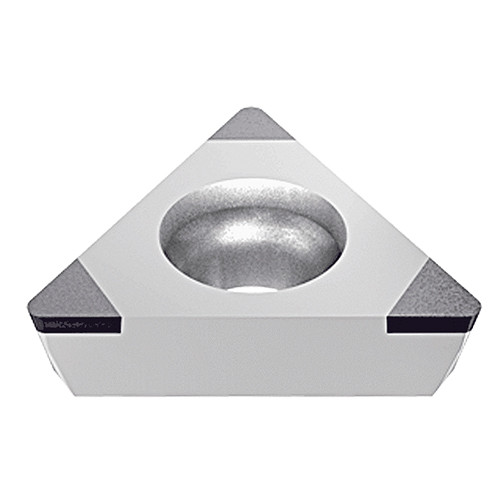

TPGW 21.51T-3MT IB05S

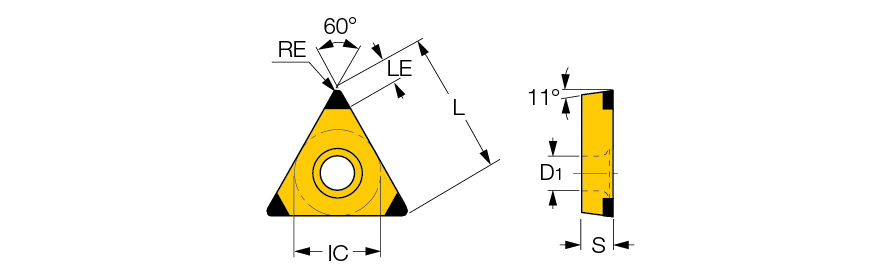

| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.11″ |
| Application | | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | ITSBORE System | | Tool Type | Turn Positive Inserts |
| Insert Style | TPGW | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.016″ | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Size | 21. | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.433″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | A |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB05S |
Product Features
| Family Description | Triangular positive inserts with 3 CBN tips for machining sintered metals and high temperature alloys. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.015
