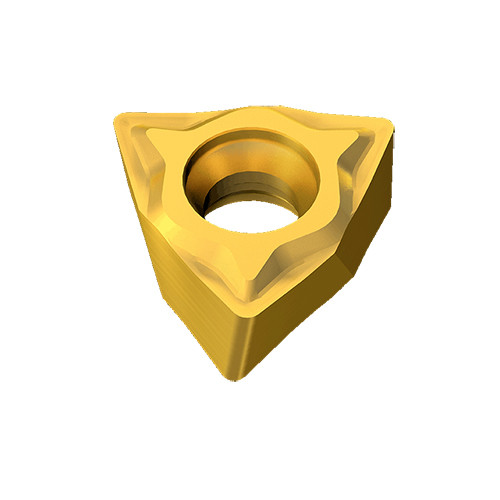

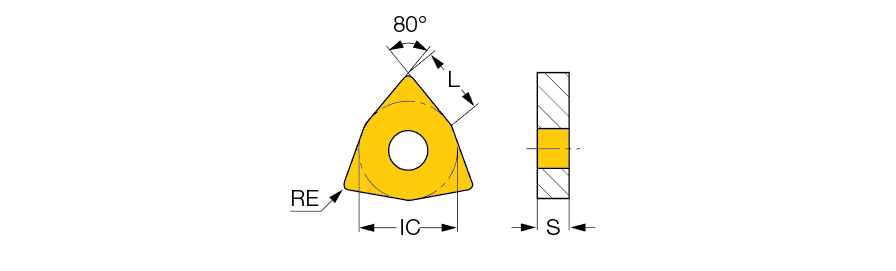

WNGP 221L-F2P IC530N
Turning Insert; 80 Trigon ; 0.171″ Length × 1/4″ IC × 0.0157″ Corner Radius ; IC530N ; Cermet ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | | Grade | IC530N |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | WNGP | Min D.O.C. | 0.012″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Size | 221 | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Cutting Edge Length (L) | 0.171″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | F2P |
| Cutting Edge Material | Cermet | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
Product Features
| Family Description | Double-sided inserts for super finish conditions on alloyed steel. Low cutting forces due to positive rake. Negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
Shipping Info
Package Weight
0.005
