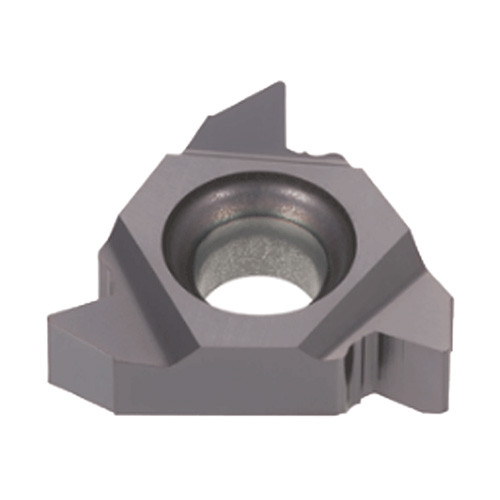

27ER5TPI530 AH8015
Laydown Threading Insert ; 5 TPI ; 5/8″ IC ; Carbide ; AH8015 ; AlTiN

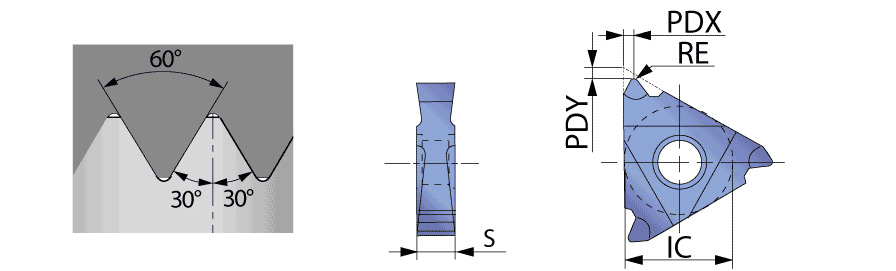

| Inscribed Circle Diameter (IC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 5 | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.02″ | Cutting Item Count (CICT) | 3 |
| Insert Thickness (S) | 1/4″ | Measurement Type | Inch |
| Grade | AH8015 | Body Material | Carbide |
| Coating | AlTiN | Thread Form Type (THFT) | V-0.040 |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.071″ |
| Application | | Inserts | |
Product Features
| Family Description | Ext. single-sided laydown inserts for API Rotary shoulder connection, full profile | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
