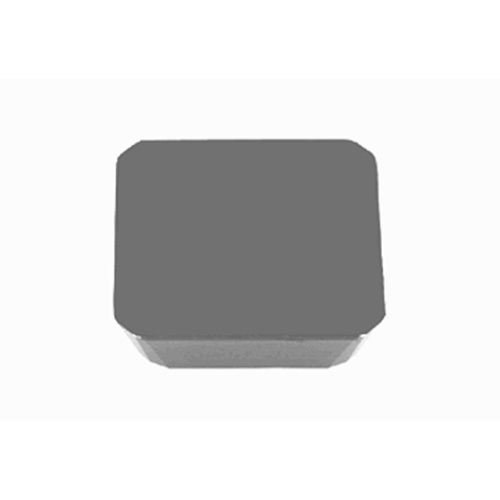

SDKN42ZTN AH3225
| Applicable Material | | Steel | Stainless Steel | | Coating | TiAlSiCrN |
| Application | | Face Milling | | Grade | AH3225 |
| Depth of Cut Maximum (APMX) | 0.157″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 1/2″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.047″ | Body Material | Carbide |
Product Features

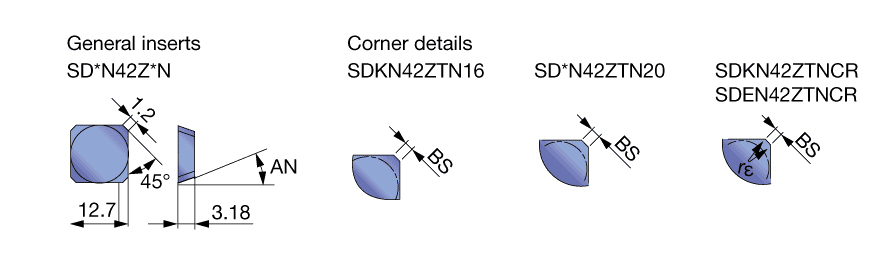

| Family Description | Flat-top square insert with 15deg relief angle for 45 deg corner angle | Country of Origin | Japan |
