| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.0138 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

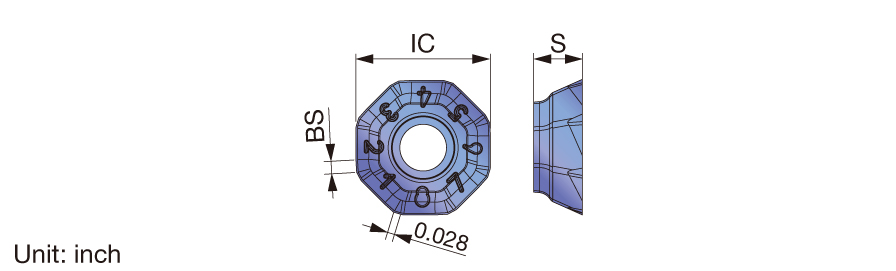

| Depth of Cut Maximum (APMX) | 0.118″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.488″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Insert Thickness (S) | 0.177″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.045″ | Cutting Edge Effective Length (LE) | 0.201″ |
| Coating | TiAlSiCrN | Measurement Type | Inch |
| Grade | AH3225 | Body Material | Carbide |
Product Features

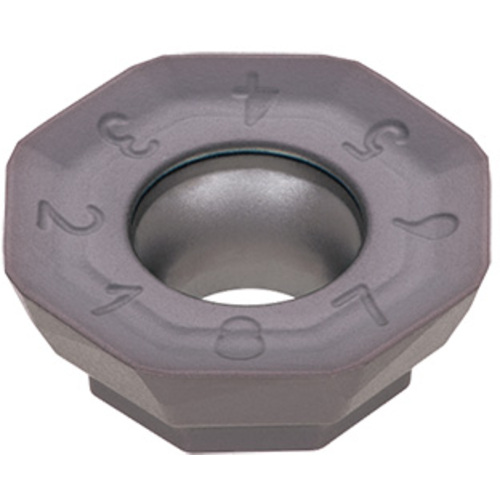

| Family Description | Octagonal milling insert with positive rake and MM chipbreaker, H class, 8 corners available | Country of Origin | Japan |
Shipping Info
Package Weight
0
