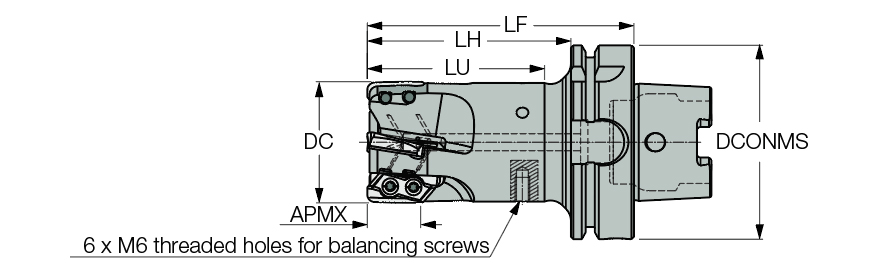

HSM90SFD50-4-63A/80MQL-22

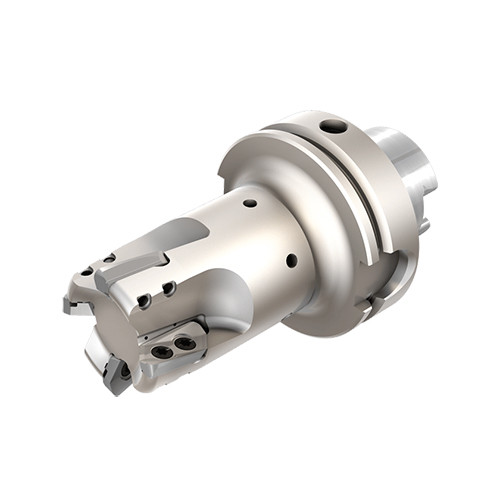

Indexable Face Mill; 50 mm Dia. × 80 mm Shank Dia. × 142 mm OAL × 22 mm LOC ; 4 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Usable Length (LU) | 73.1 mm |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 22 mm | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Measurement Type | Metric |
| Overall Length (OAL) | 142 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Master Insert Identification (MIID) | HSM90S APCR 220708R | Shank Type | HSK A63/80 |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | 90° endmills with integral HSK adaptation carrying super positive and polished rake inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all internal coolant HSK spindles (to be order separately) Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screws Kit balancing screws to be order separately Insert tightening torque: 6 (Nxm) |
Shipping Info
Package Weight
4.700
