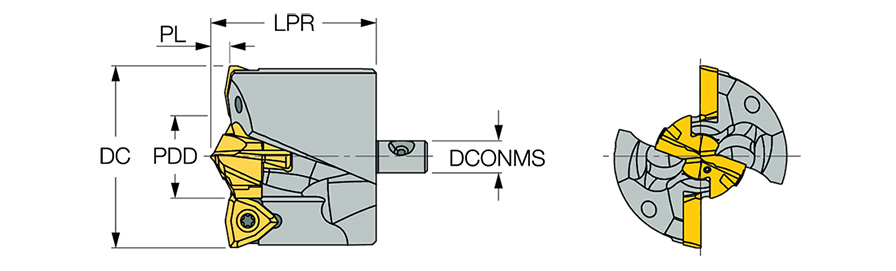

| Cutting Diameter (DC) | 1-1/4″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 0626-MNC 4F |
| Connection Diameter Machine Side (DCONMS) | 0.256″ | Point Length (PL) | 0.1633″ |
| Protruding Length (LPR) | 1.37″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 1.25″ |
Product Features

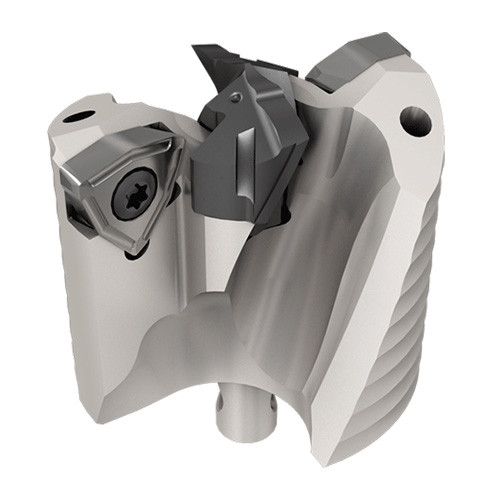

| Family Description | Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | Country of Origin | Israel |
Shipping Info
Package Weight
179
