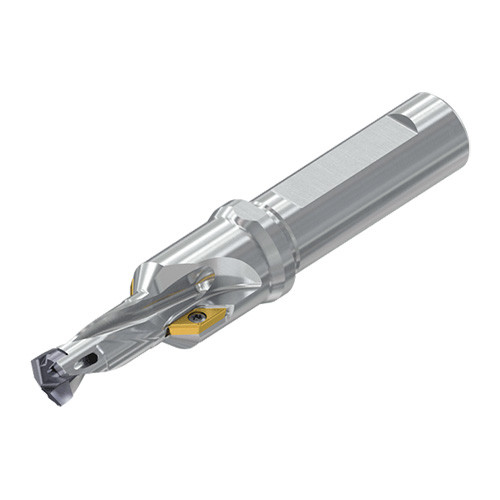

TIDU0807L1674A90F1000

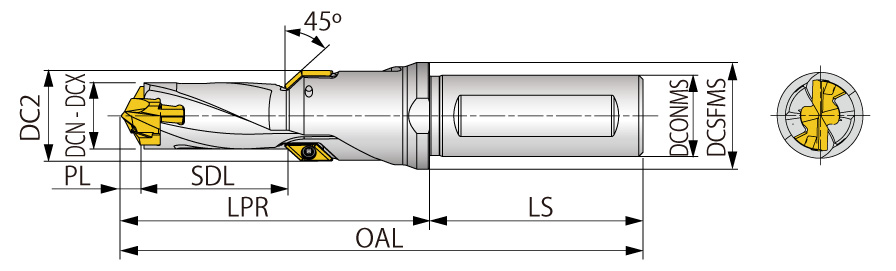

| Usable Length (LU) | 3.22″ | Overall Length (OAL) | 5.43″ |
| Application | | Chamfering | General Drilling | | Shank Length (LS) | 2.21″ |
| Tool Type | Chamfering drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.122″ |
| Insert Seat Size Code (SSC) | 20 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.7874″ | Flange Diameter (DF) | 1.26″ |
| Cutting Diameter Maximum (DCX) | 0.8228″ |
Product Features
| Family Description | DrillMeister Drill chamfer for tap size | Country of Origin | Japan |
