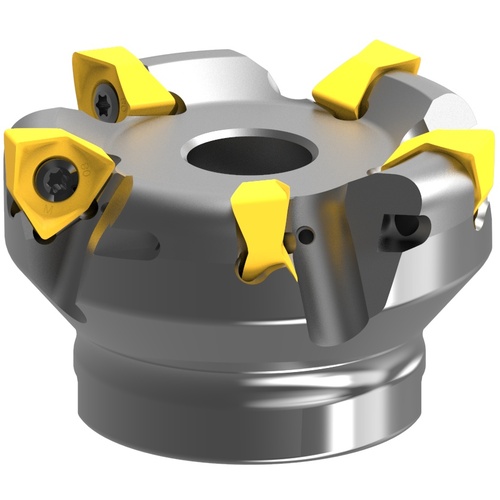

WWX400-080A05AR MILL
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 8.2 mm LOC ; 5 Inserts ; 90 Degrees ; Series WWX400_MM
| Cutting Diameter (DC/DCX) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 80 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 5 | Functional Length (LF) | 50 mm |
| Depth of Cut Maximum (APMX) | 8.2 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Series/List # | WWX400_MM |
| Ramping Angle Maximum (RMPX) | 0.16 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
