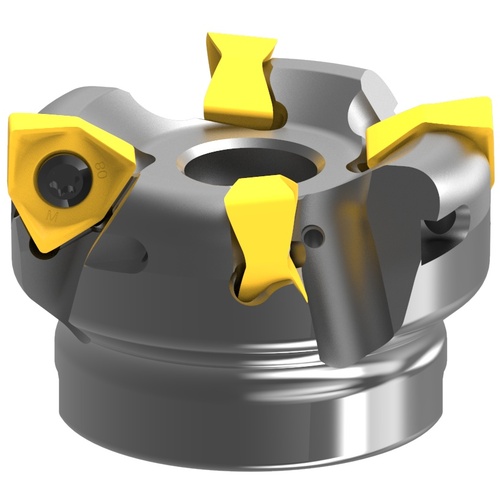

WWX400-063A04AR MILL
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 8.2 mm LOC ; 4 Inserts ; 90 Degrees ; Series WWX400_MM
| Cutting Diameter (DC/DCX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 63 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 4 | Functional Length (LF) | 40 mm |
| Depth of Cut Maximum (APMX) | 8.2 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Series/List # | WWX400_MM |
| Ramping Angle Maximum (RMPX) | 0.26 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
