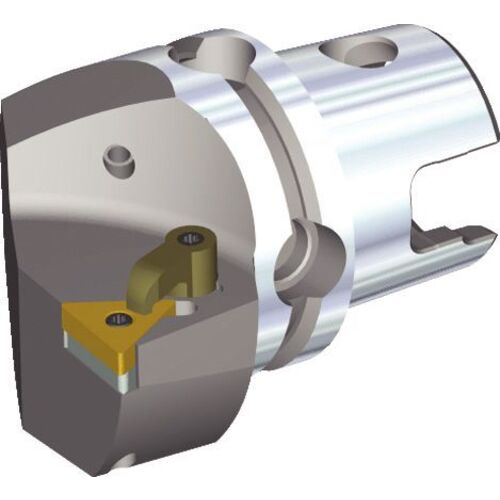

KM50TSMTUNL16 KM50TS PIN & CLAMP CUTTING UNIT
Turning Toolholder; 81.95 mm OAL x #50 Shank Dia. ; Left Hand ; Steel
Additional Tariff Surcharge of 8.5 %
| Overall Length (OAL) | 81.95 mm | Shank Type | KM |
| Connection Diameter Machine Side (DCONMS) | #50 | Rake Angle Axial (GAMP) | -5 Degrees |
| Minimum Bore Diameter (DMIN) | 70 mm | Rake Angle Radial (GAMF) | -5 Degrees |
| Cutting Direction (HAND) | Left Hand | Weight of Item (WT) | 1.39331984 |
| Master Insert Identification (MIID) | Triangle 60 | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.3933
