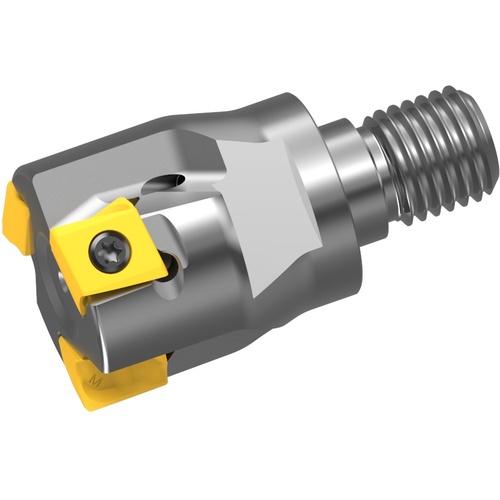

VPX300R3503AM1640 MILL
Indexable Face Mill; 35 mm Dia. × 17 mm Shank Dia. × 63 mm OAL × 11 mm LOC ; 3 Inserts ; 90 Degrees ; Series VPX300
| Cutting Diameter (DC/DCX) | 35 mm | Ramping Angle Maximum (RMPX) | 1.28 Degrees |
| Cutting Diameter (DC) | 35 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 11 mm | Functional Length (LF) | 40 mm |
| Connection Diameter Machine Side (DCONMS) | 17 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 63 mm | Series/List # | VPX300 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
