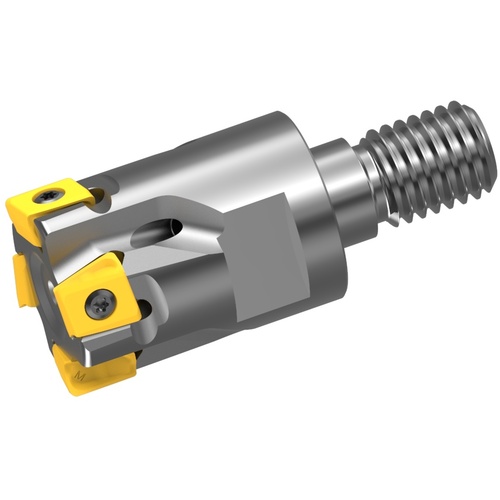

VPX200R2504AM1235 MILL
Indexable Face Mill; 25 mm Dia. × 12.5 mm Shank Dia. × 57 mm OAL × 8 mm LOC ; 4 Inserts ; 90 Degrees ; Series VPX200
| Cutting Diameter (DC/DCX) | 25 mm | Ramping Angle Maximum (RMPX) | 0.97 Degrees |
| Cutting Diameter (DC) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 8 mm | Functional Length (LF) | 35 mm |
| Connection Diameter Machine Side (DCONMS) | 12.5 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 57 mm | Series/List # | VPX200 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.999
