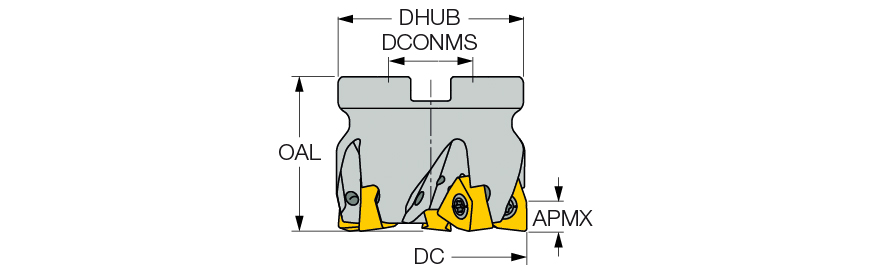

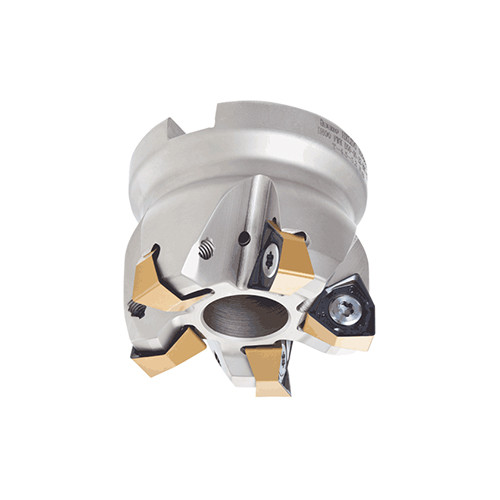

H690 FWN D1.5-05-.75-R04
Indexable Face Mill; 1-1/2″ Dia. × 3/4″ Shank Dia. × 1-1/2″ OAL × 0.157″ LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | H690 WNMU 0403-PNTR |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.157″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-1/2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.44″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |

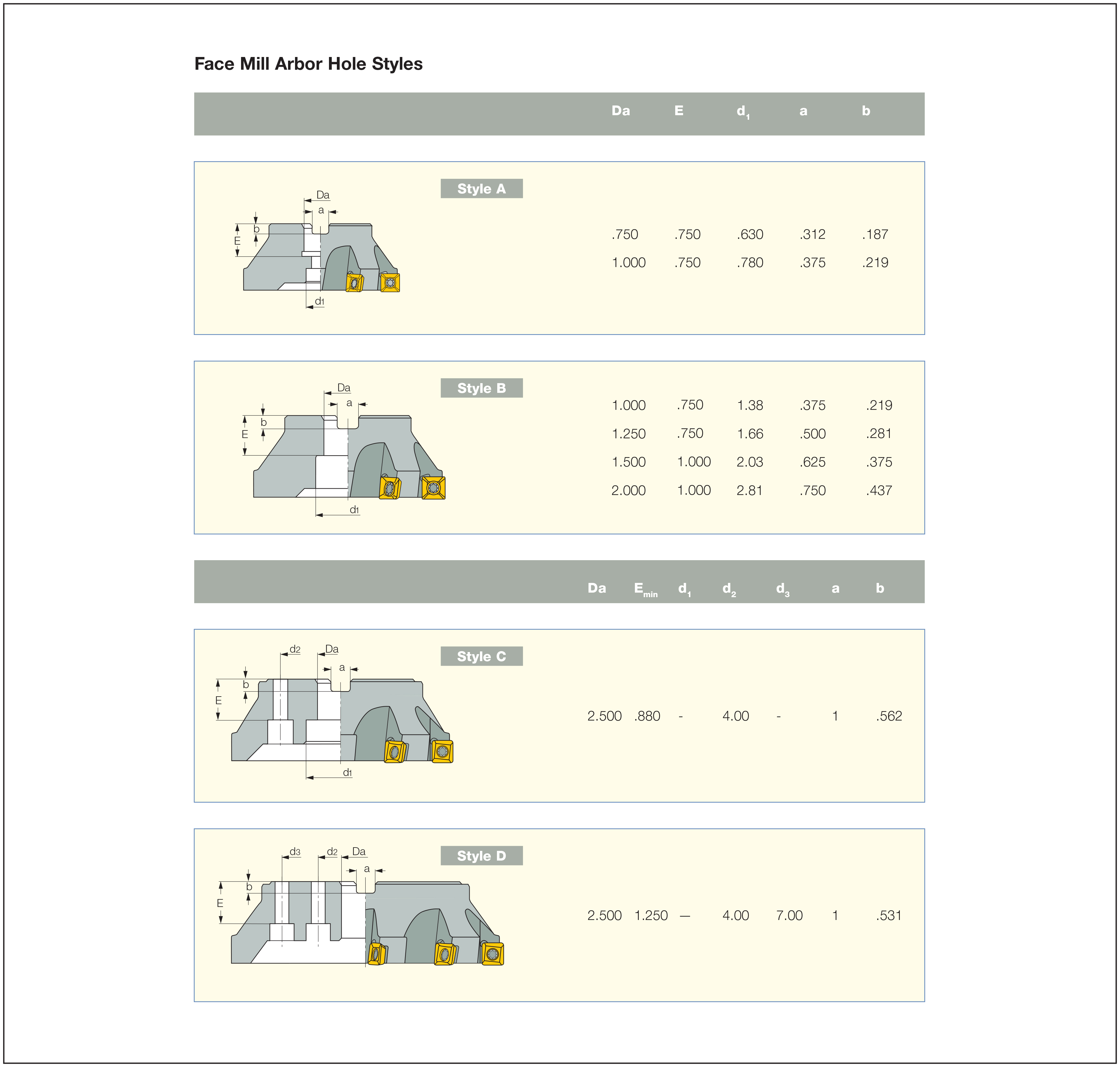

| Arbor Style | A |
Product Features
| Family Description | 90° face mills carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges | Country of Origin | Israel |
| Remarks | Insert clamping screw must be lubricated for every index. Tightening torque 8 lbfxin |
Shipping Info
Package Weight
0.721
