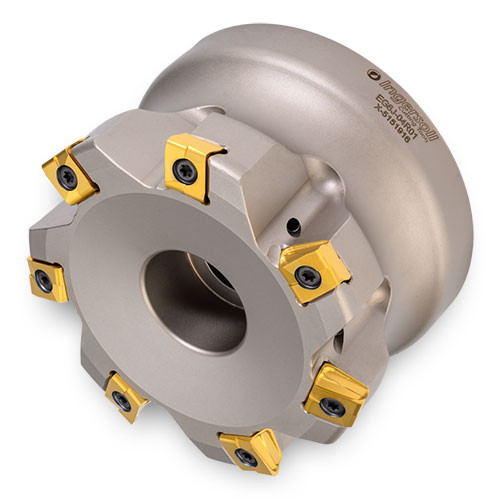

EG5J-04R01
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2-1/2″ OAL × 0.09″ LOC ; 9 Inserts ; 10.3 Degrees
| Cutting Diameter (DC/DCX) | 4″ | Arbor Style | A |
| Cutting Diameter (DC) | 3.159″ | Ramping Angle Maximum (RMPX) | 0.2 Degrees |
| Cutting Diameter Maximum (DCX) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.09″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Tool Cutting Edge Angle (KAPR) | 10.3 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Double Dovetail Insert Seating for Maximum Stability Heavy duty & super strong! Excellent performance & economy! | Country of Origin | USA |
Shipping Info
Package Weight
0.011
