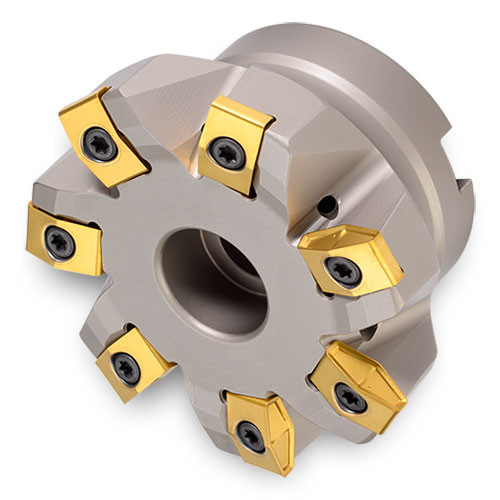

8G5A-03R01
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.058″ LOC ; 7 Inserts ; 12.7 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |
| Cutting Diameter (DC) | 2.399″ | Ramping Angle Maximum (RMPX) | 1.6 Degrees |
| Cutting Diameter Maximum (DCX) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.058″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 12.7 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | 12.7° Hi-feed rougher Heavy duty & super strong! Excellent performance & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.004
