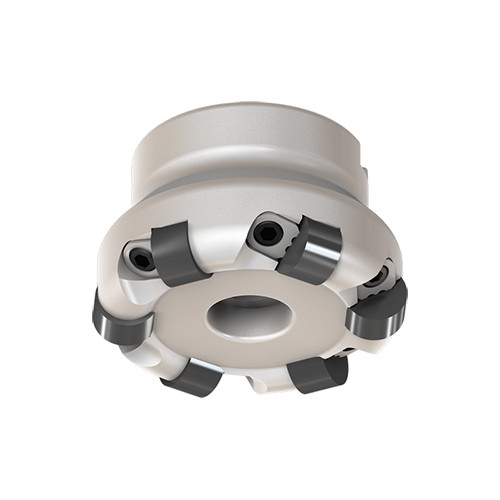

FRN D253A300-7-1.0-12
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.118″ LOC ; 7 Inserts

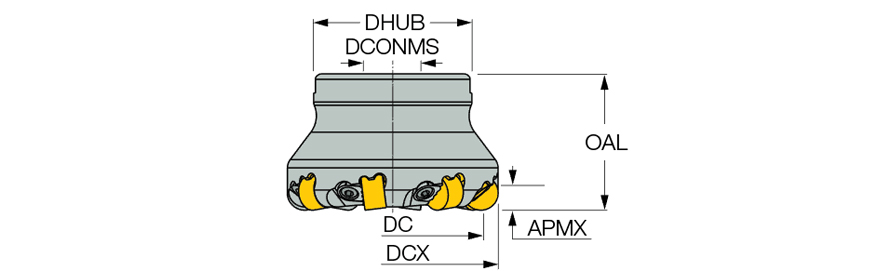

| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |

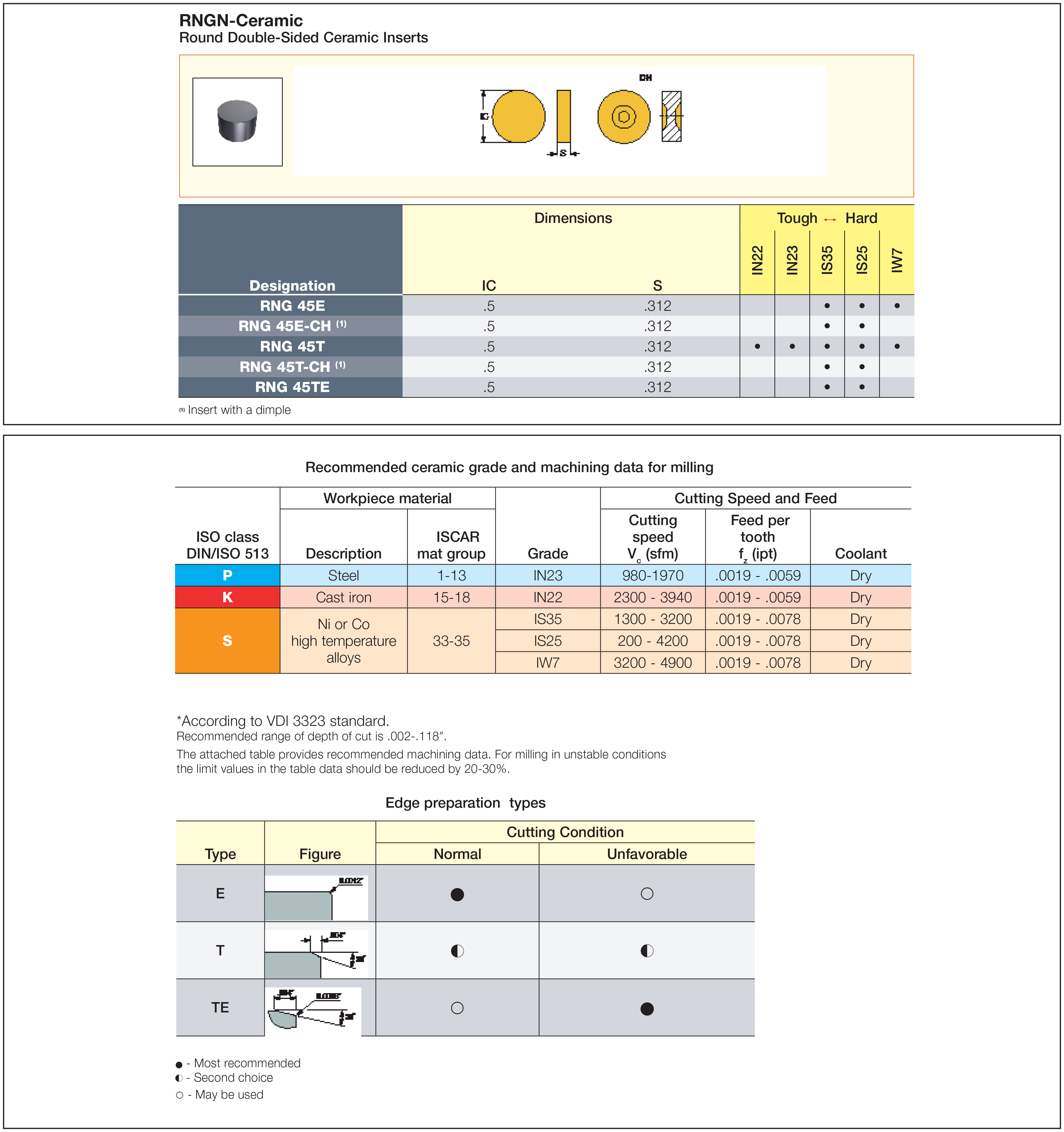

| Cutting Diameter (DC) | 2-1/2″ | Master Insert Identification (MIID) | RNGN 1207 |
| Cutting Diameter Maximum (DCX) | 3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.118″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2-3/4″ |
Product Features
| Family Description | Face Mill for Wedge-Clamped Double-Sided Round Inserts | Country of Origin | S.Korea |
| Remarks | Radius for programing: .25 Recommended tightening torque:42.48 Lbf*in For cutting conditions click on More info |
Shipping Info
Package Weight
2.619
