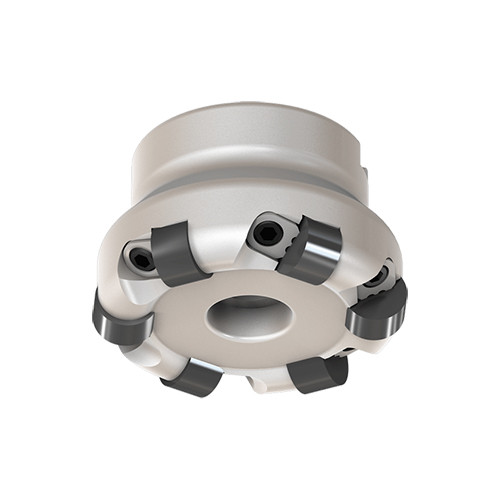

FRN D068A080-07-27-12

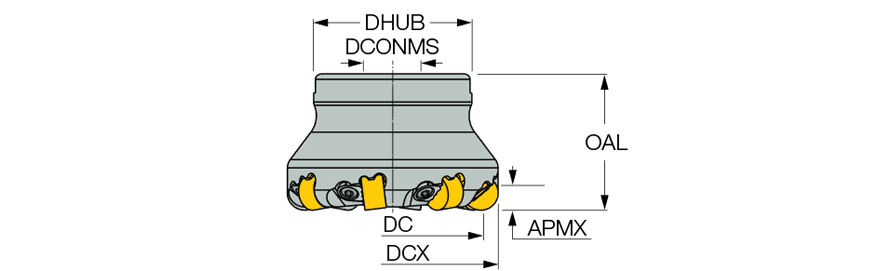

| Cutting Diameter (DC/DCX) | 80 mm | Arbor Style | A |
| Cutting Diameter (DC) | 67.3 mm | Master Insert Identification (MIID) | RNGN 1207 |
| Cutting Diameter Maximum (DCX) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 58 mm |
Product Features
| Family Description | Face Mill for Wedge-Clamped Double-Sided Round Inserts | Country of Origin | S.Korea |

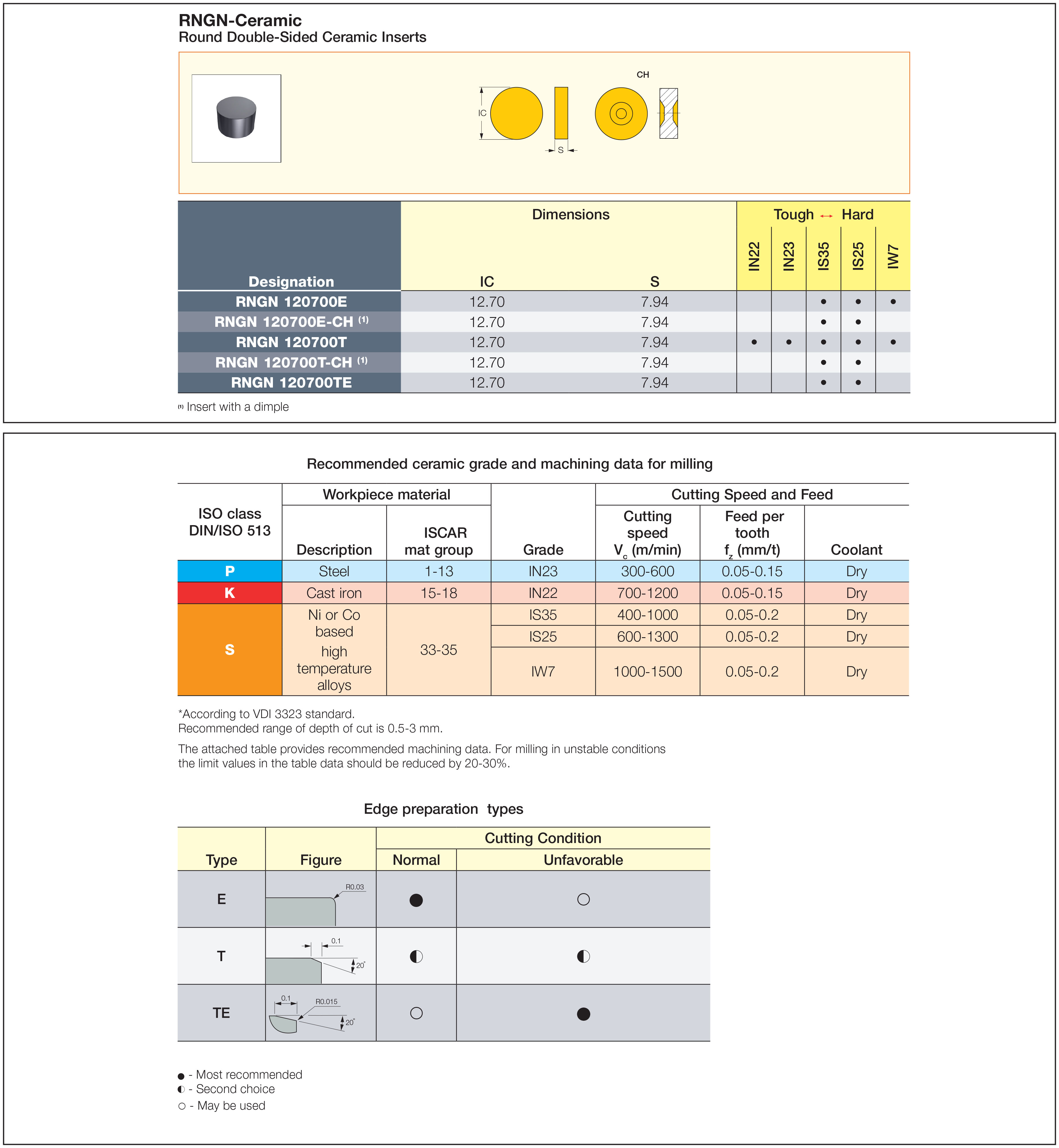

| Remarks | Radius for programing: 6.35 Recommended tightening torque:4.8 N*m For cutting conditions click on More info |
Shipping Info
Package Weight
2.535
