| Cutting Diameter (DC/DCX) | 3.937″ | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 3.937″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 13 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.354″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1.968″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |

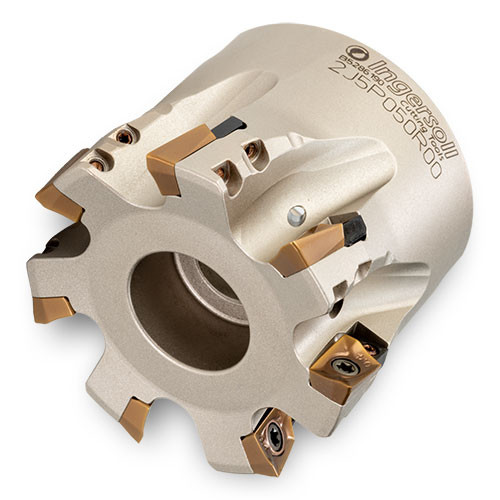

| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | Insert radii: .015″, .031″, .062″, .078″, .120″ R Cutter design mills on face and shoulder | Country of Origin | Israel |
Shipping Info
Package Weight
4.310
