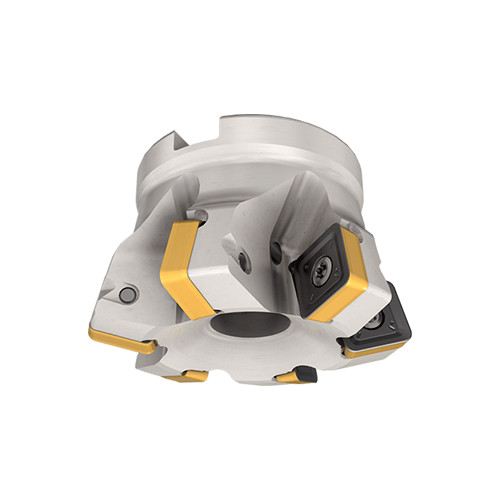

FFQ4 D5.00-08-1.50-17
Indexable Face Mill; 5″ Dia. × 1-1/2″ Shank Dia. × 2-1/4″ OAL × 0.118″ LOC ; 8 Inserts

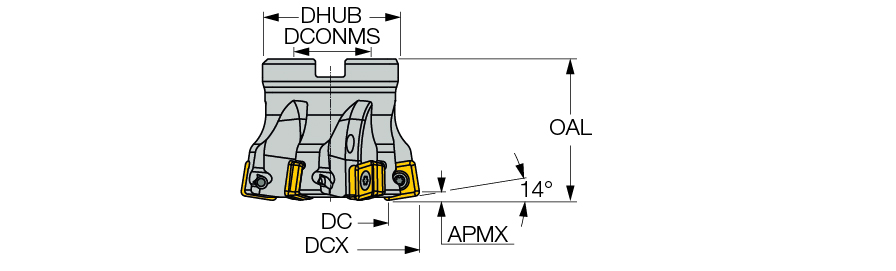

| Cutting Diameter (DC/DCX) | 5″ | Arbor Style | B |
| Cutting Diameter (DC) | 3.85″ | Master Insert Identification (MIID) | FFQ4 SOMT 170625T |
| Cutting Diameter Maximum (DCX) | 5″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.118″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 2-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.228″ |
Product Features
| Family Description | Fast feed face mills carrying single-sided inserts with 4 cutting edges | Country of Origin | Israel |

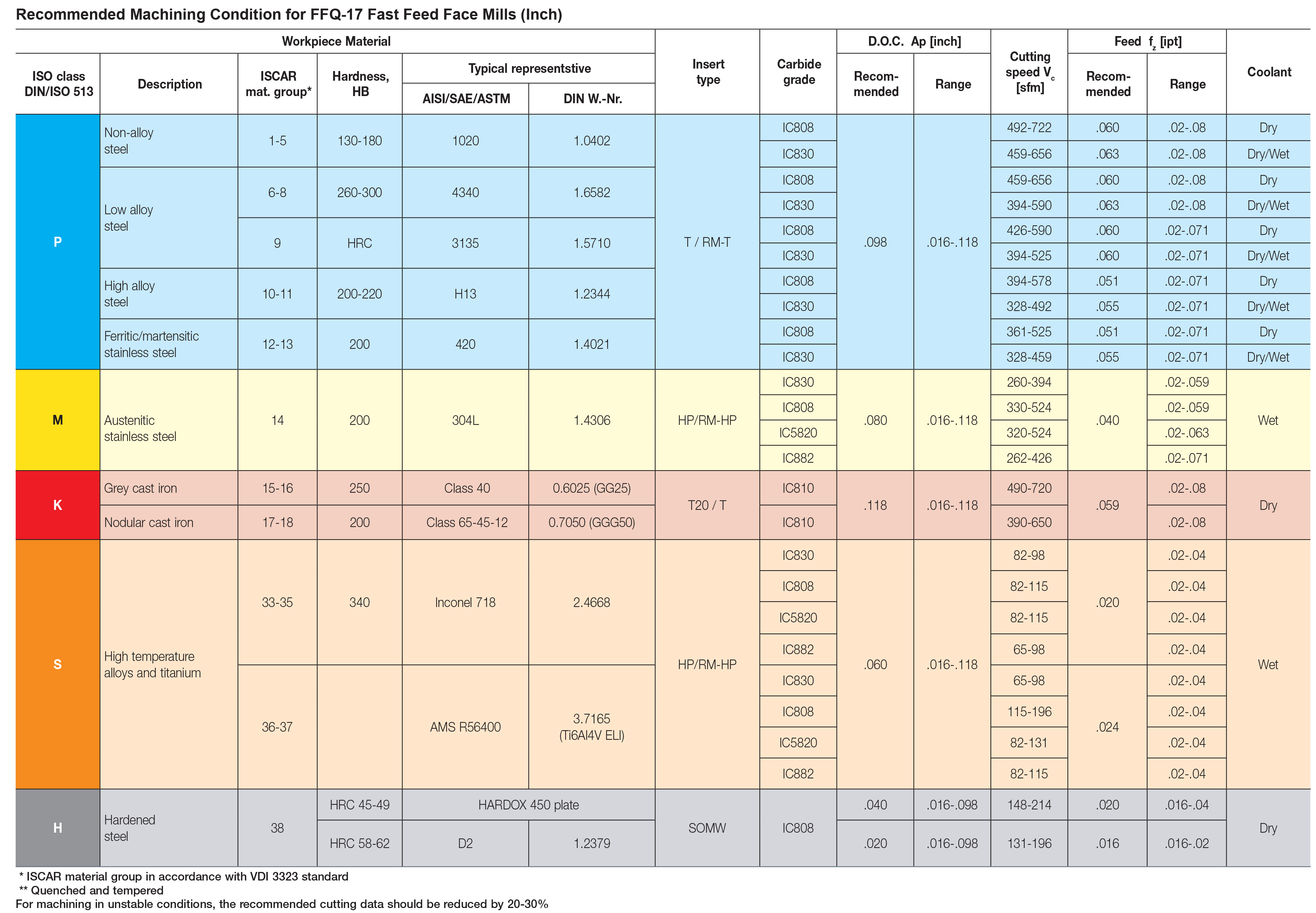

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .216 for insert SOMW .248 When mounting insert SOMW, APMX=.098 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
5.038
