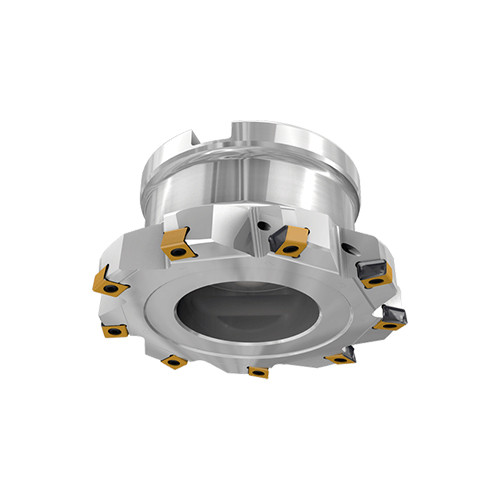

HTF D4.0-08-1.50-R-LN10
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2″ OAL × 0.0157″ LOC ; 8 Inserts

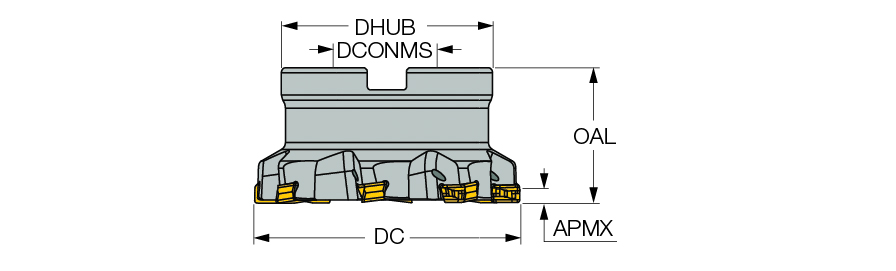

| Cutting Diameter (DC/DCX) | 4″ | Arbor Style | B |
| Cutting Diameter (DC) | 4″ | Master Insert Identification (MIID) | HTP LNAR 1006 FR |
| Cutting Item Count (CICT) | 8 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.0157″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2″ | Application | | Facing | Shouldering | |
| Hub Diameter (DHUB) | 3.228″ | Measurement Type | Inch |
Product Features
| Family Description | Face mills carrying tangentially clamped inserts with 4 cutting edges for extra fine milling applications | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
3.747
