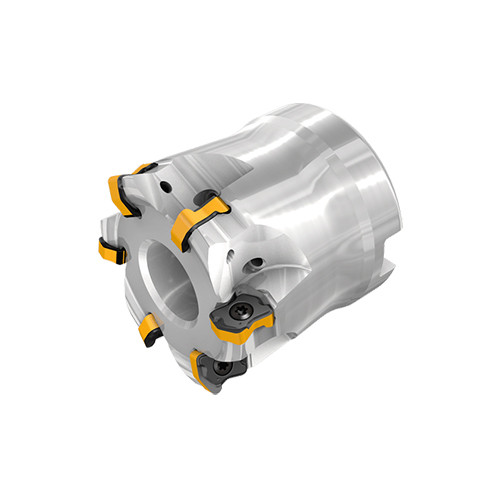

FFX4 FD032-5-16-04
Indexable Face Mill; 32 mm Dia. × 16 mm Shank Dia. × 40 mm OAL × 0.8 mm LOC ; 5 Inserts ; 17 Degrees

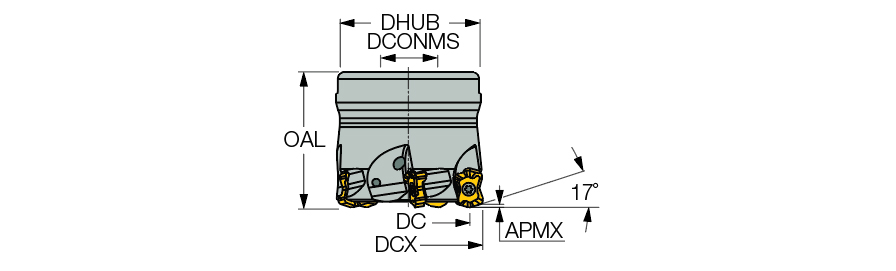

| Cutting Diameter (DC/DCX) | 32 mm | Arbor Style | A |
| Cutting Diameter (DC) | 24.6 mm | Master Insert Identification (MIID) | FFX4 XNMU 040310T |
| Cutting Diameter Maximum (DCX) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 38 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
Product Features
| Family Description | Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Programming radius for inserts XNMU/XNMW: 1.7mm |
Shipping Info
Package Weight
0.666
