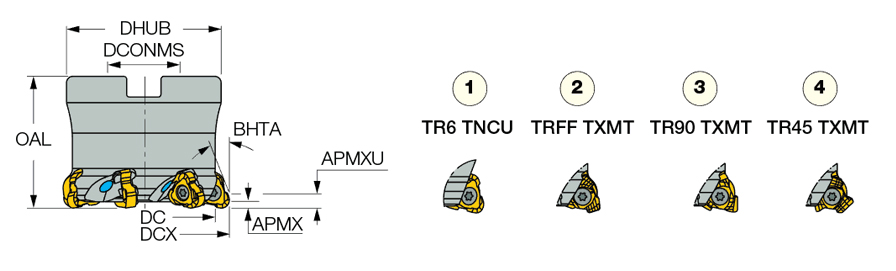

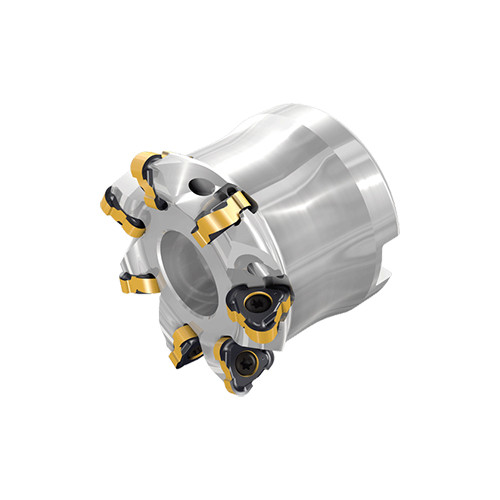

TR6 FR D40-06-16-10
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 37.15 mm OAL × 2.5 mm LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 40 mm | Arbor Style | A |
| Cutting Diameter (DC) | 35 mm | Master Insert Identification (MIID) | TR6 TNCU 100425 |
| Cutting Diameter Maximum (DCX) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | |
| Overall Length (OAL) | 37 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 32 mm |
Product Features
| Family Description | Multifunction face mills that carry four different insert geometries. | Country of Origin | Israel |

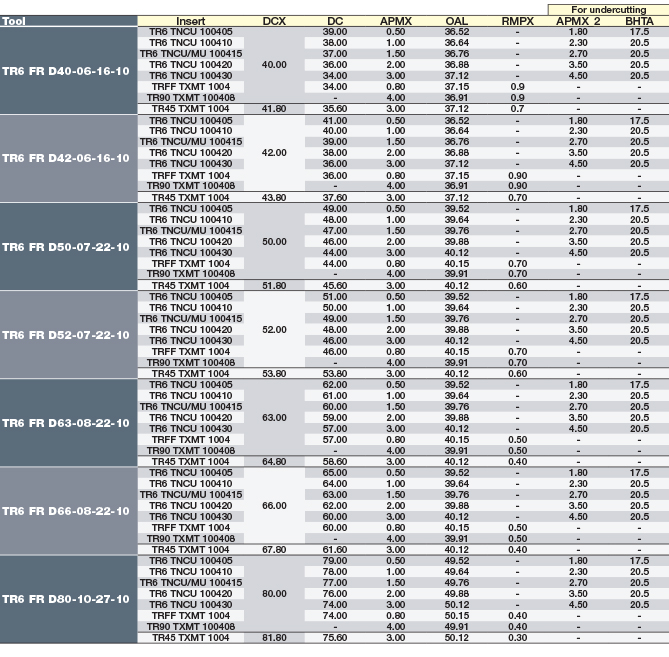

| Remarks | Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info |
Shipping Info
Package Weight
0.626
