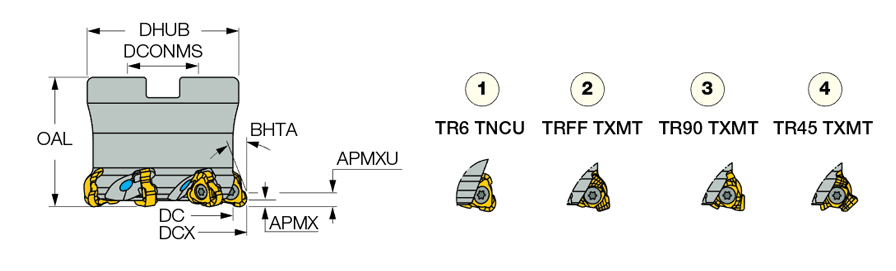

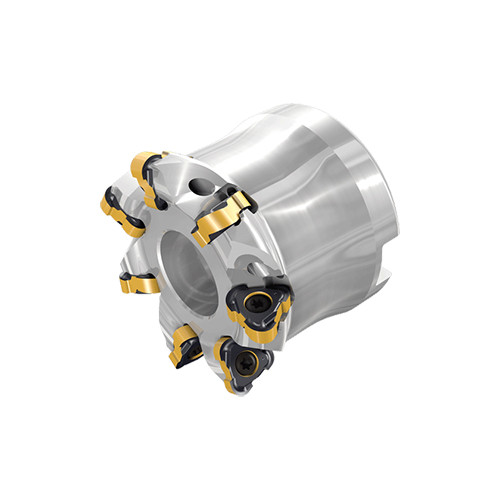

TR6 FR D2.50-08-1.00-10
Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 1.755″ OAL × 0.098″ LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 2-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 2.303″ | Master Insert Identification (MIID) | TR6 TNCU 100425 |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.098″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2-1/4″ |
Product Features
| Family Description | Multifunction face mills that carry four different insert geometries. | Country of Origin | Israel |

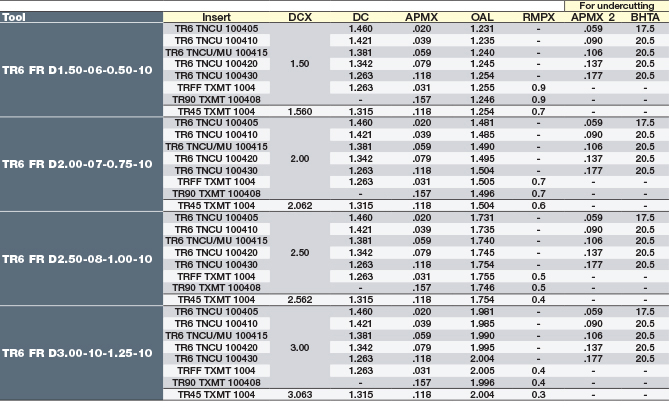

| Remarks | Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info |
Shipping Info
Package Weight
1.909
