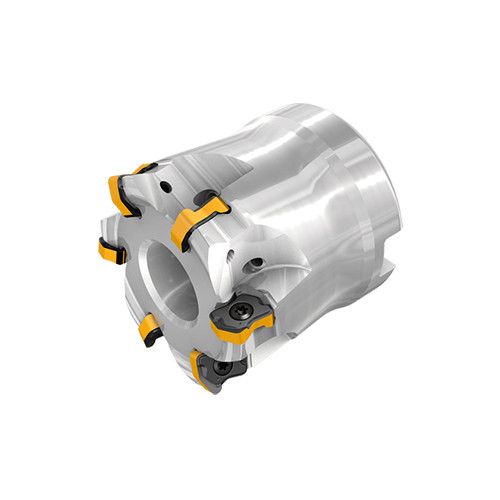

FFX4 FD1.50-6-.50-04
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1-1/2″ OAL × 0.031″ LOC ; 6 Inserts ; 18 Degrees

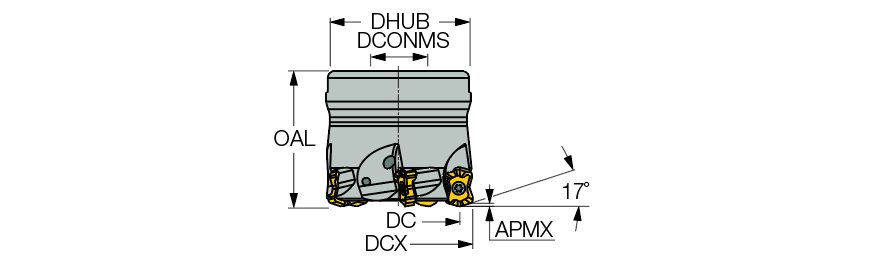

| Cutting Diameter (DC/DCX) | 1-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.209″ | Master Insert Identification (MIID) | FFX4 XNMU 040310T |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 1-1/2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.417″ | Tool Cutting Edge Angle (KAPR) | 18 Degrees |
Product Features
| Family Description | Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC Programming radius for inserts XNMU/XNMW: .066 |
Shipping Info
Package Weight
0.749
