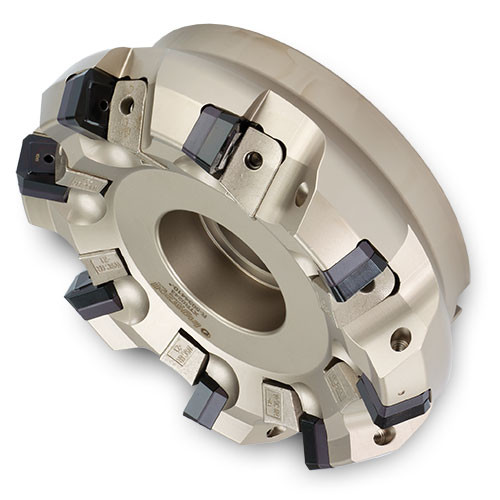

5C4M-14L01
Indexable Face Mill; 14.663″ Dia. × 2-1/2″ Shank Dia. × 2-3/8″ OAL × 0.484″ LOC ; 16 Inserts ; 60 Degrees
| Cutting Diameter (DC/DCX) | 14.663″ | Arbor Style | A |
| Cutting Diameter (DC) | 14″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 14.663″ | Body Material | Steel |
| Cutting Item Count (CICT) | 16 | Cutting Direction (HAND) | Left Hand |
| Depth of Cut Maximum (APMX) | 0.484″ | Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 2-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Power shear geometry ideally suited for hard materials, weld & interruptions | Country of Origin | Usa |
Shipping Info
Package Weight
0.090
