2J1D032R00

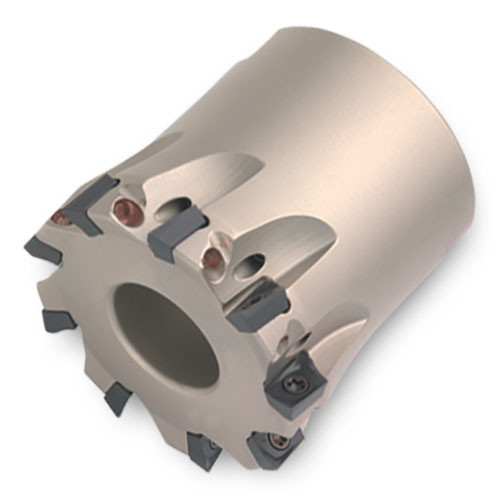

Indexable Face Mill; 32 mm Dia. × 16 mm Shank Dia. × 32 mm OAL × 5.7 mm LOC ; 8 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Arbor Style | A |
| Cutting Diameter (DC) | 32 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 5.7 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 32 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed | Country of Origin | Germany |
Shipping Info
Package Weight
0.240
