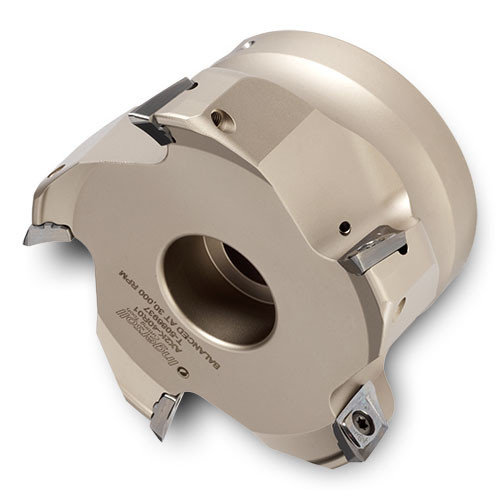

AX2K-30R02
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 2″ OAL × 0.63″ LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | BALANCIN | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Insert Corners: .015″, .031″, .062″, .094″, .125″, .197″ R V-Shape with key drive pocket ideal for high RPM | Country of Origin | USA |
Shipping Info
Package Weight
0.003
