AX2Q-40R01

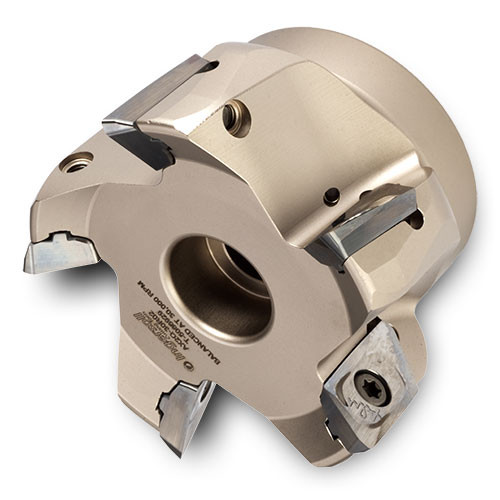

Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2-3/8″ OAL × 0.83″ LOC ; 3 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 4″ | Arbor Style | A |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 3 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.83″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | BALANCIN | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2-3/8″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Finishes as good as 15 Ra Insert corners: .020″, .031″, .062″, .118″, .197″, .250″ R V-Shape with key drive pocket ideal for high RPM | Country of Origin | Usa |
Shipping Info
Package Weight
0.008
