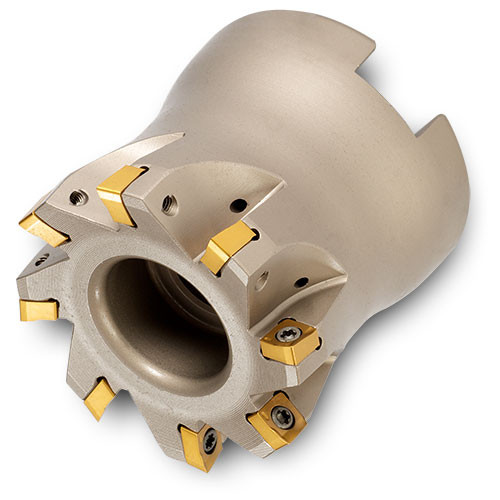

TJ1C-15R01
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1.57″ OAL × 0.18″ LOC ; 8 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.18″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1.57″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Insert corners: .008″ .015″ .031″ R & Hi-Feed 32-63 Ra surface finishes when engaging the wiper (WEP) Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress | Country of Origin | Usa |
Shipping Info
Package Weight
0.001
