DL5T-50R01

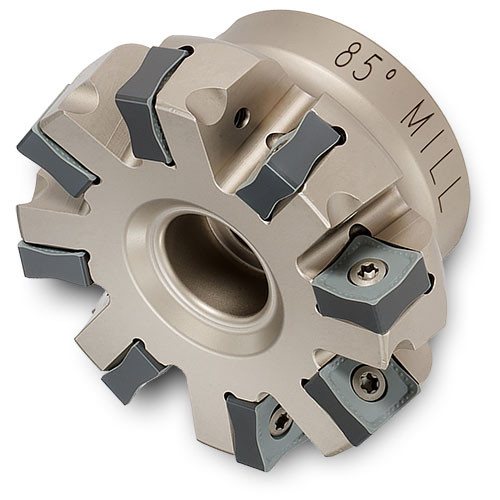

Indexable Face Mill; 5.11″ Dia. × 1-1/2″ Shank Dia. × 2-3/8″ OAL × 0.47″ LOC ; 13 Inserts ; 85 Degrees
| Cutting Diameter (DC/DCX) | 5.11″ | Arbor Style | A |
| Cutting Diameter (DC) | 5″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 5.11″ | Body Material | Steel |
| Cutting Item Count (CICT) | 13 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.47″ | Application | | Facing | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 85 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Great Price-per-Index economy! Insert Corner: .015″, .031″, .047, .062″ R. | Country of Origin | Usa |
Shipping Info
Package Weight
0.014
