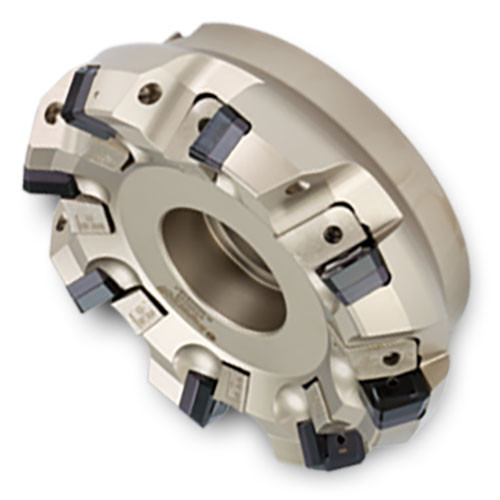

5C2M-10R01
Indexable Face Mill; 10.67″ Dia. × 2-1/2″ Shank Dia. × 2-3/8″ OAL × 0.51″ LOC ; 10 Inserts ; 60 Degrees
| Cutting Diameter (DC/DCX) | 10.67″ | Arbor Style | A |
| Cutting Diameter (DC) | 10″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 10.67″ | Body Material | Steel |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.51″ | Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Power shear geometry ideally suited for hard materials, weld & interruptions | Country of Origin | Usa |
Shipping Info
Package Weight
0.066
