TG1F040R00

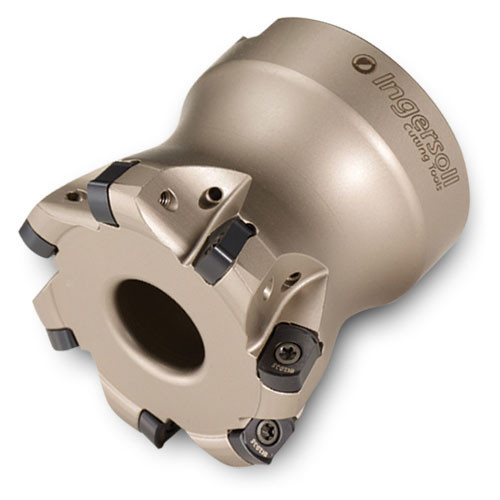

Indexable Face Mill; 1.5748″ Dia. × 0.866″ Shank Dia. × 1.575″ OAL × 0.039″ LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 1.5748″ | Hub Diameter (DHUB) | 2.48″ |
| Cutting Diameter (DC) | 1.268″ | Arbor Style | A |
| Cutting Diameter Maximum (DCX) | 1.5748″ | Ramping Angle Maximum (RMPX) | 0.5 Degrees |
| Cutting Item Count (CICT) | 6 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.039″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.866″ | Application | | Helical Interpolation | Rampdown | Shouldering | |
| Overall Length (OAL) | 1.575″ | Measurement Type | Inch |
Product Features
| Family Description | Three different insert edge preparations provide application flexibility Excellent hi-feed performance & economy! | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.775
