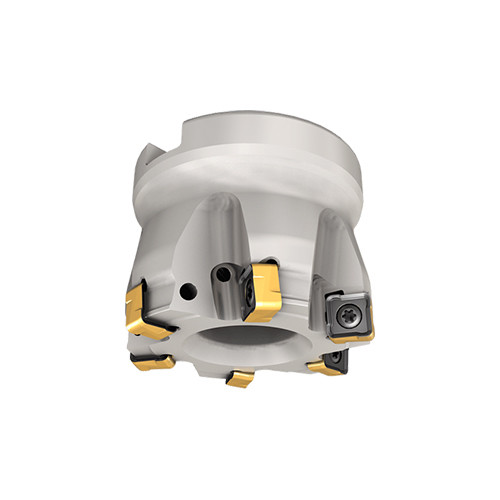

S890 FSZ D050-08-22-R08
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 5 mm LOC ; 8 Inserts ; 90 Degrees

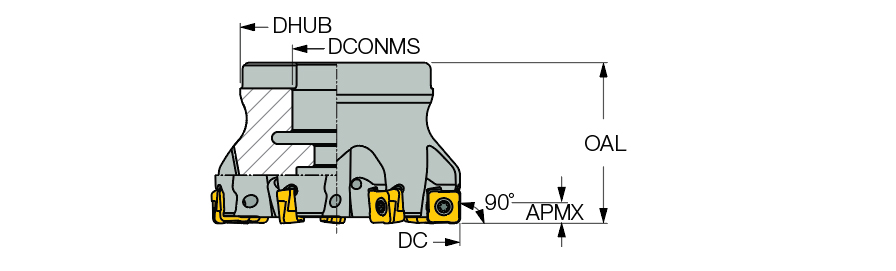

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | S890 SZMU 0804... |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | Face mills carrying double-sided square inserts with 8 cutting edges | Country of Origin | Israel |

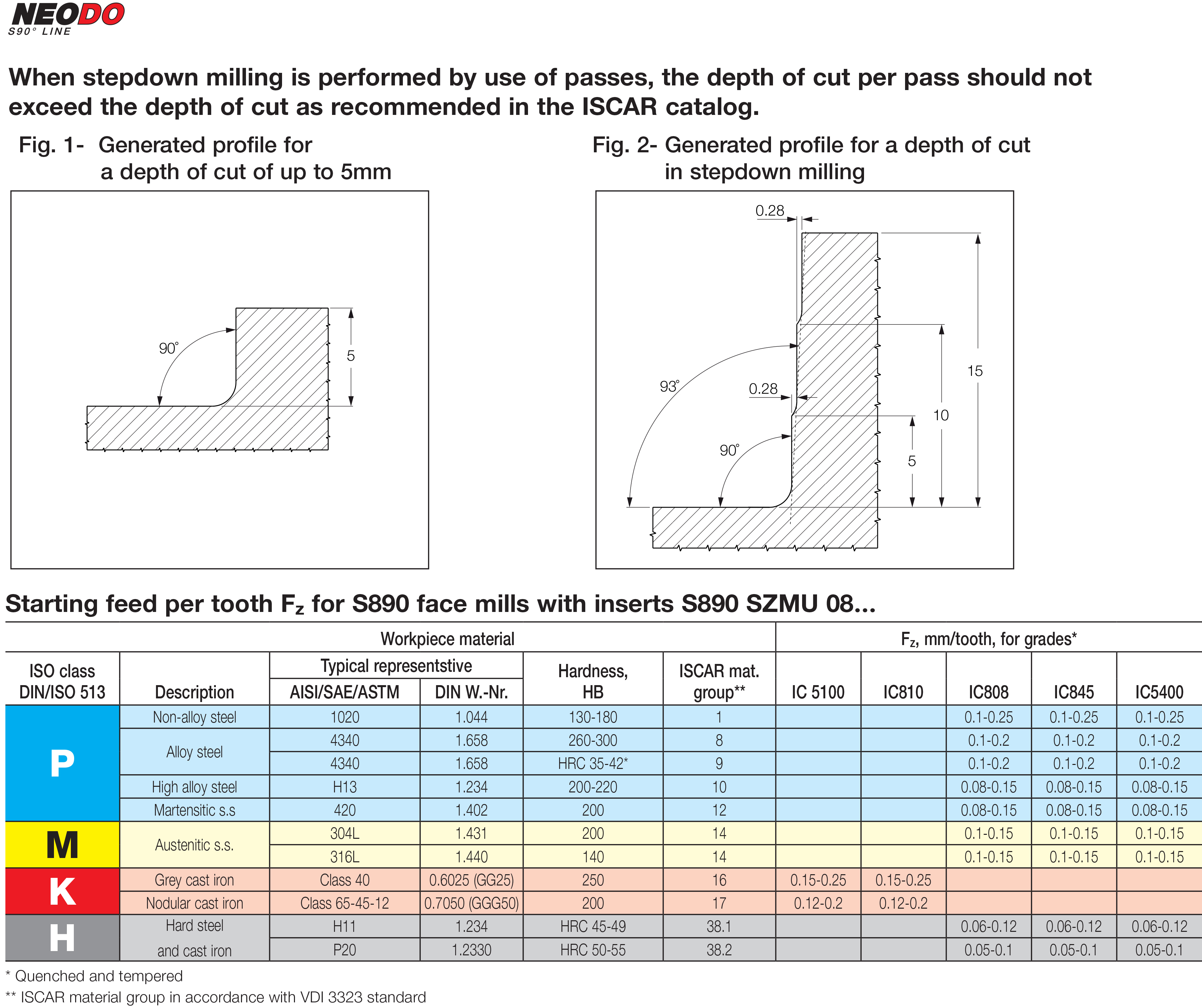

| Remarks | For machining recommendations, click on More Info |
Shipping Info
Package Weight
1.038
