TG1J-40R01

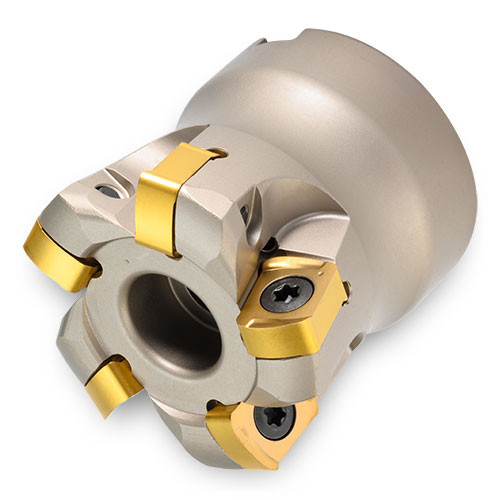

Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2-3/8″ OAL × 0.078″ LOC ; 7 Inserts
| Cutting Diameter (DC/DCX) | 4″ | Hub Diameter (DHUB) | 2.48″ |
| Cutting Diameter (DC) | 3.384″ | Arbor Style | A |
| Cutting Diameter Maximum (DCX) | 4″ | Ramping Angle Maximum (RMPX) | 0.3 Degrees |
| Cutting Item Count (CICT) | 7 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.078″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2-3/8″ | Measurement Type | Inch |
Product Features
| Family Description | Three different insert edge preparations provide application flexibility Excellent hi-feed performance & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.009
