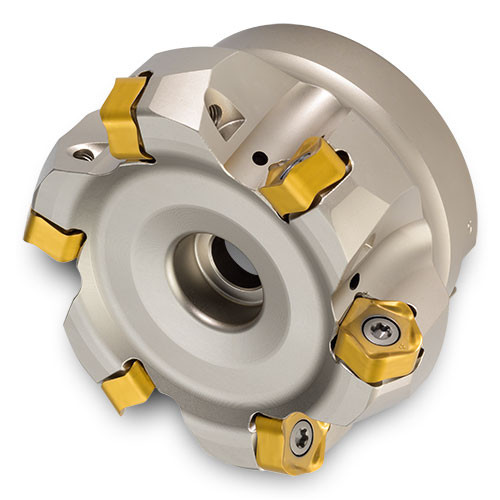

DM6P-30R01
Indexable Face Mill; 3.283″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 1/4″ LOC ; 6 Inserts ; 65 Degrees
| Cutting Diameter (DC/DCX) | 3.283″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 3.283″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1/4″ | Application | | Facing | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 65 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | 63-125 Ra surface finishes Positive rake and reinforced edge offer low cutting forces and smooth machining Great price-per-edge economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.004
