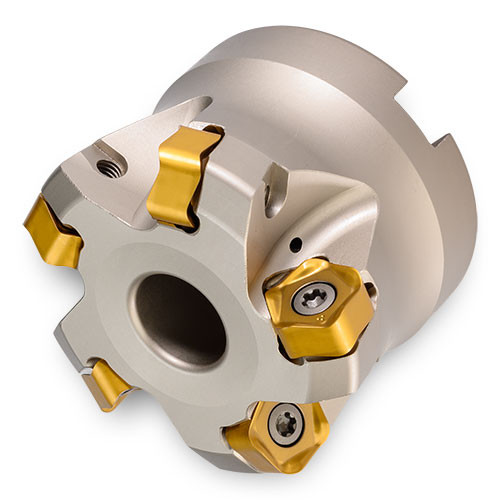

DP6P-25R01
Indexable Face Mill; 2-1/2″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.118″ LOC ; 5 Inserts ; 25 Degrees
| Cutting Diameter (DC/DCX) | 2-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.85″ | Ramping Angle Maximum (RMPX) | 1.6 Degrees |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.118″ | Application | | Facing | Helical Interpolation | Rampdown | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 25 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Positive rake and reinforced edge offer low cutting forces and smooth machining in deep cavities High ramping capability Great price-per-edge economy! | Country of Origin | Germany |
Shipping Info
Package Weight
0.003
